8 WATER TECHNOLOGY Laser Cutting Equipment LC100 for Superior Fabrication

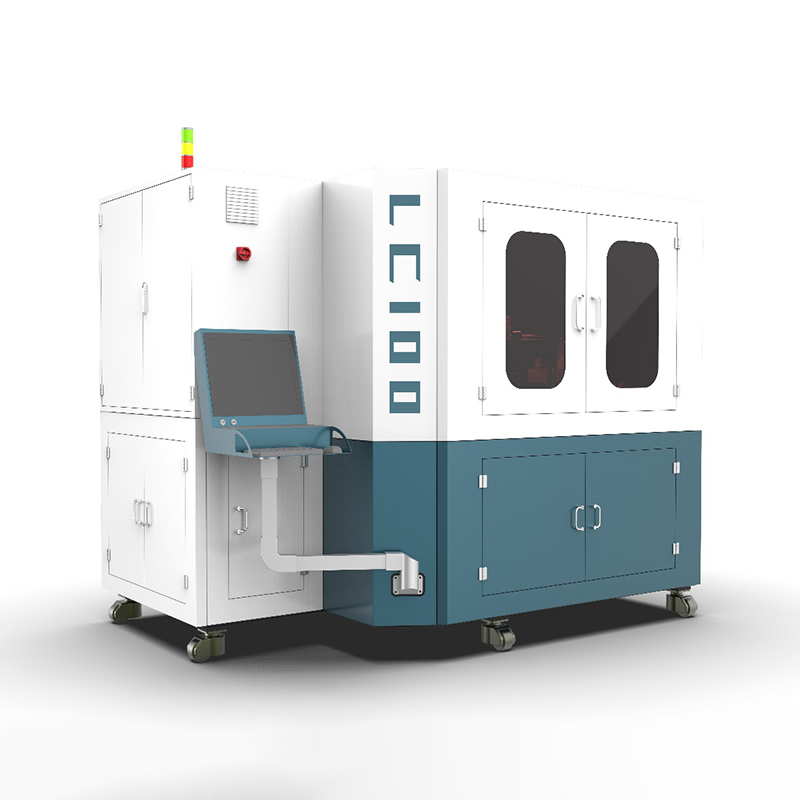

The LC100 Laser Cutting Machine is a high-precision device designed for cutting magnetic materials, including rare earth permanent magnet materials. It offers high cutting precision and speed, with a maximum cutting size of 100*100mm. The innovative double workbench design enhances cutting efficiency, making it suitable for the specialized cutting of complex shapes in magnetic materials.

By revolutionizing traditional cutting methods in the rare earth permanent magnet industry, the LC100 allows for direct formation and processing of intricate shapes in a single step. This advancement significantly reduces labor requirements and eliminates the need for multiple subsequent processes. The machine operates stably and reliably, is user-friendly, and features automatic loading and unloading, which reduces labor intensity. The LC100 stands out for its high production capacity, precision, and efficiency, making it a valuable asset in the industry.

    Product Features

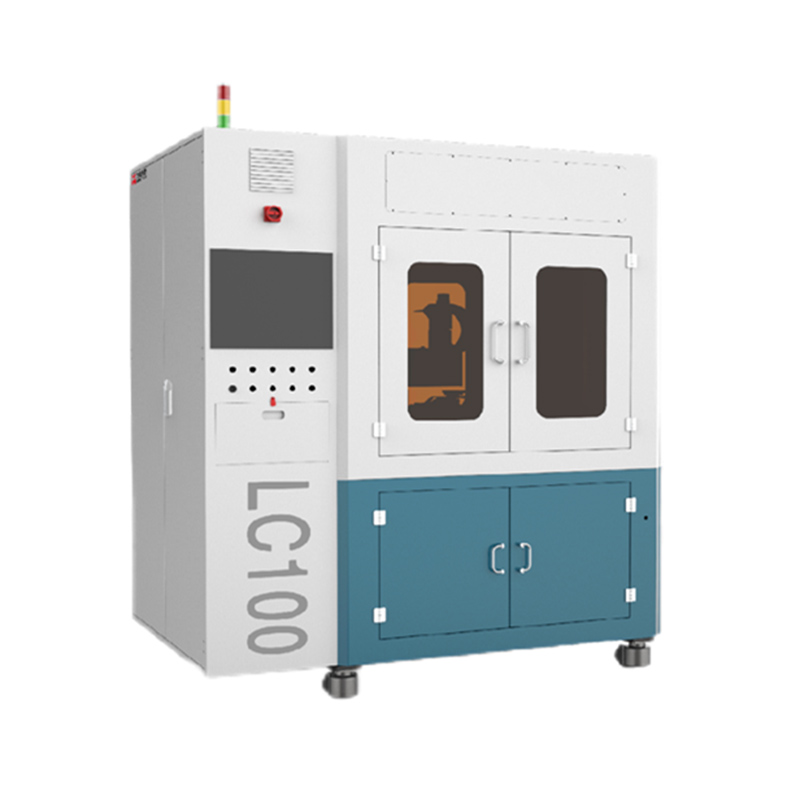

    Laser-cutting-equipment-LC100-2
    01
    7 Jan 2019
    High Automation: Features automatic loading and unloading, significantly reducing operator labor intensity.
    Advanced Software Control: Utilizes an advanced software control system that is user-friendly, reliable, and stable in performance.
    Precision and Speed: Designed with a high-precision servo motor for efficient and rapid cutting.
    Environmental Compliance: Equipped with an automatic dust removal system in an airtight cutting environment, ensuring compliance with environmental protection standards.
    Convenient Operation: Wireless handheld operation simplifies adjustments and debugging, allowing for customizable shortcuts as needed.
    Robust Structure: The main machine features a marble base, providing strong rigidity and high strength.
    Efficient Dynamics: Incorporates an aluminum beam and lightweight cutting head for fast dynamic response, stability, and high safety.
    Automated Loading System: Self-developed automatic loading and unloading system enhances automation, structural stability, equipment utilization, and reduces operator labor intensity.
    Integrated Control System: Fully closed-loop control with high-precision linear motors and grating rulers, forming a comprehensive high-precision transmission and control system for efficient and rapid cutting.
    Dust Removal System: Features an automatic dust removal system in a closed cutting environment, ensuring environmental compliance.
    User-Friendly Software: Advanced software control system is easy to operate with a low failure rate.

    Technical Parameters

    Project

    Content

    Technical parameters

    Model

    Model

    LC100

    Processing capacity

    Max processing size

    100mm*100mm*6mm

    Cutting accuracy

    ±0.01mm

    Number of stations

    1

    Maximum cutting speed

    5m/min

    System

    Laser cutting control system

    FAGOR(Spain)

    Dust removal system

    HR1100

    Cooling medium

    Dual Temperature Dual Control Chiller

    Pure water or de-plasma water

    Power/air source

    Power supply

    AC380V

    Power

    15 Kw

    Laser Power

    1000/3000W

    Air source

    N2,O2

    Dimensions and weight

    Dimensions (L x W x H)

    1900mm*1300*mm*2200mm

    Weight

    1800 Kg

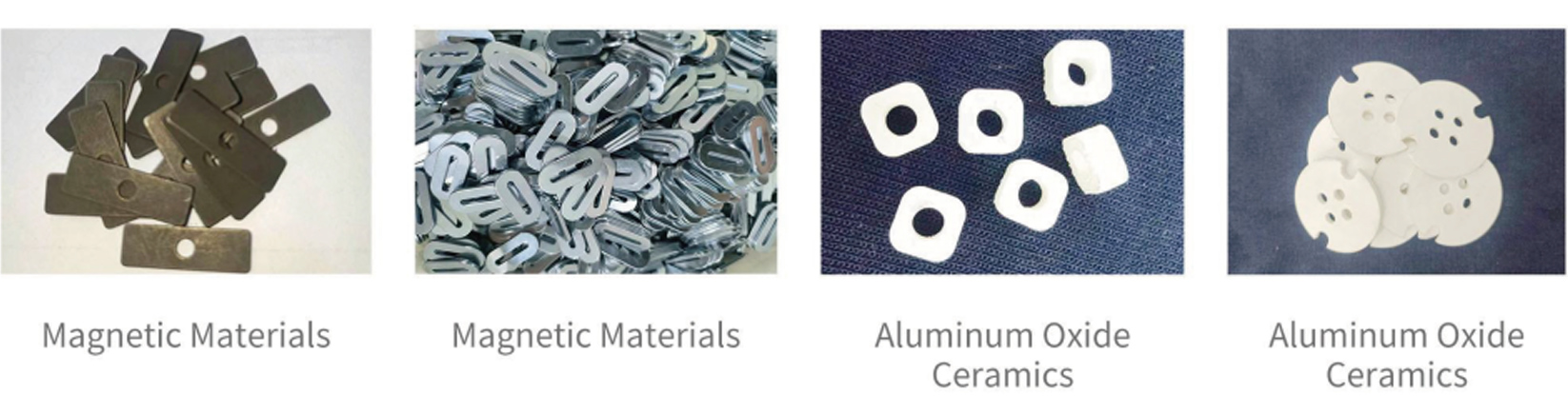

    image004_02
