Smart Chamfering Equipment (Magnet) for Flawless Edge Finishing

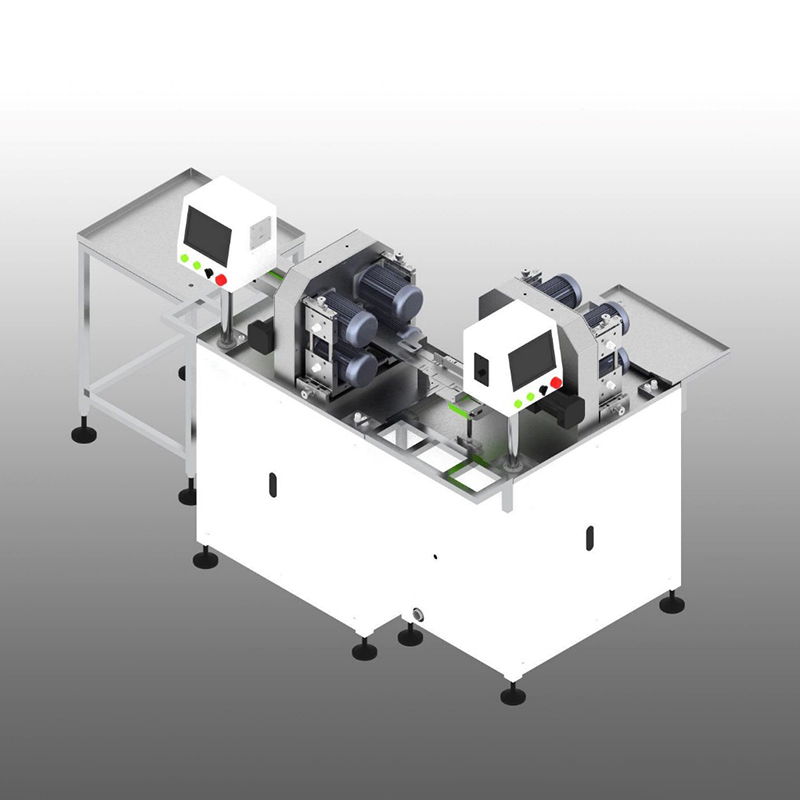

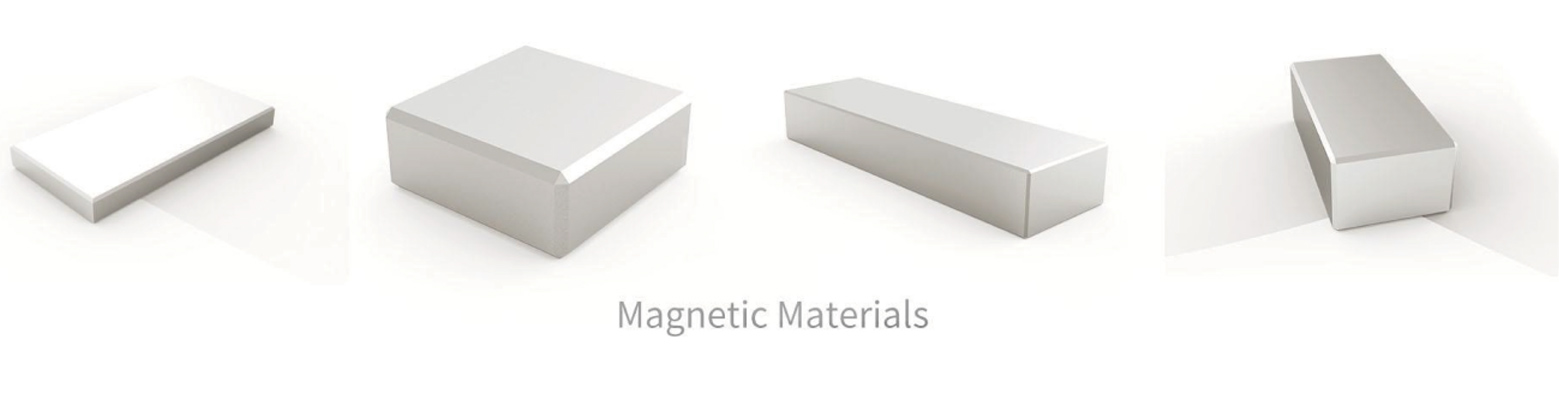

The Chamfering Machine Series is a compact automated solution developed to meet the needs of automatic chamfering for magnetic materials. A single machine can chamfer up to 4 edges, and connecting two machines enables 8-edge chamfering functionality. The equipment can be adjusted to chamfer specific edges based on actual production requirements. By changing molds, the machine can accommodate the production of different products.

product details

Product Features

7 Jan 2019

Easy Product Switching: Switch between different products by simply replacing the mold and making fine adjustments.

High Intelligence: Equipped with card material alarm and counting functions.

Optional Vibration Plate Feeding: Maximizes labor savings.

Multi-Layer Protection: Includes water collection pallets to recover cutting fluid during production and prevent splashing.

Dual Chamfering Modes: Offers both dry and wet chamfering production modes.

Visual Human-Machine Interface: Ensures easy operation.

Technical Parameters

Content	Technical parameters
Model	DJ80	DJ8080	DJ120	DJ120S
Max processed product size	68×20mm	68×20mm	120×40mm	120×40mm
Processed product thickness	1.5-20mm	1.5-20mm	1.5-40mm	1.5-40mm
Chamfering angle	45°	45°	45°	45°
Number of chamfered edges	4	8	4	4
Cutting fluid	Water	Water	Water	Water
Liquid storage capacity	25L	25×2L	35L	Centralized liquid supply
Pump flow	12L/min	12×2L/min	25L/min	Centralized liquid supply
Motor type	Three-phase asynchronous motor	Three-phase asynchronous motor	Three-phase asynchronous motor	Servo motor
Motor power × quantity	370W×4	370W×8	550W×4	750W×4
Motor speed	2800r/min	2800r/min	2800r/min	2000-6000r/min
Grinding wheel diameter	200mm	200mm	200mm	200mm
Power	90W	90W×2	120W	120W
Card material detection	have	have	have	have
Count setting	have	have	have	have
Power supply	380V±10%、50Hz	380V±10%、50Hz	380V±10%、50Hz	380V±10%、50Hz
Power (wet down)	1.6 KW	3.2 KW	2.4KW	3.2KW
Power (dry pour)	2.16KW	4.32 KW	3KW	N/A
Dimensions (L x W x H)	745 × 495 ×1380 mm	1270 ×910 ×1360 mm	988 ×582 ×1446mm	1083 ×669 ×1551mm
Weight	170 Kg	340Kg	190 Kg	195KG
