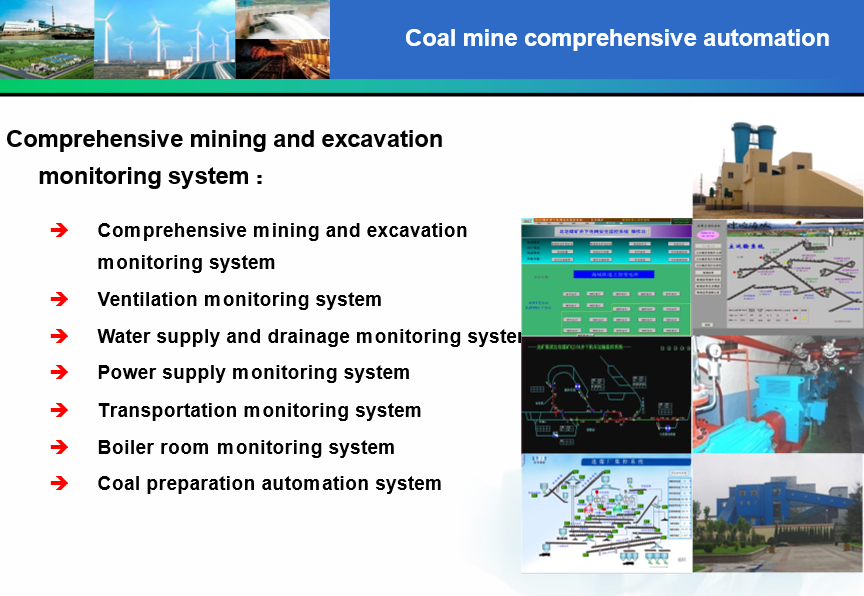

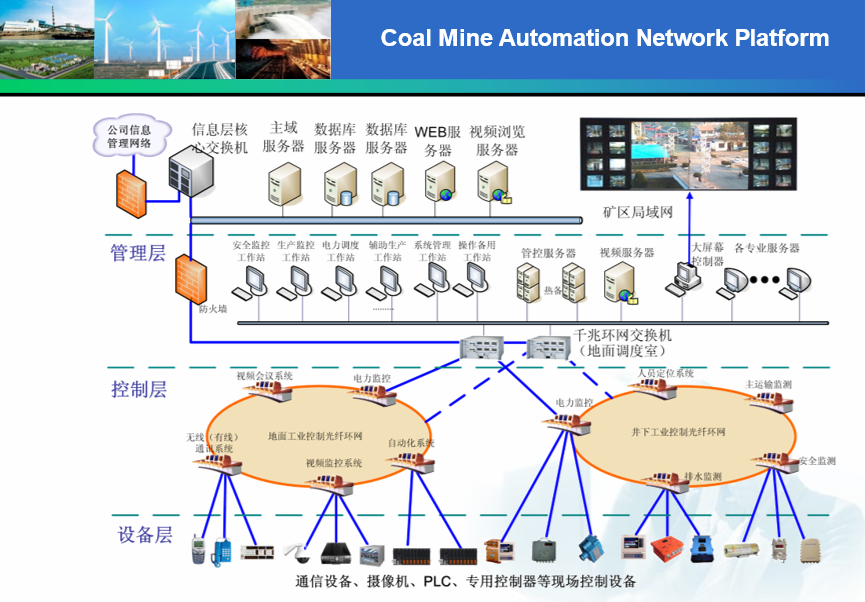

Comprehensive Automation in Coal Mines Comprehensive automation in coal mines is a significant aspect that aims to enhance the efficiency, safety, and productivity of mining operations. It involves the integration of various advanced technologies and systems. For example, it includes automated monitoring and control of mining equipment such as coal cutters, conveyors, and ventilation systems. Through sensors and data acquisition systems, real-time information about the mine's environment, equipment status, and production parameters can be collected and analyzed. This enables remote operation and intelligent decision-making, reducing the need for manual intervention and minimizing the risk of It also helps in optimizing the extraction process, improving resource utilization, and ensuring the continuous and stable operation of the mine.

Mine-used Switches Mine-used switches are essential electrical components in coal mines. These switches are specifically designed to meet the harsh and hazardous conditions of the mining environment. They are used to control the power supply and distribution within the mine, ensuring the safe and reliable operation of various electrical equipment. Mine-used switches have features such as explosion-proof enclosures to prevent the ignition of flammable gases or dust that may be present in the mine. They also have high current-carrying capacity and reliable short-circuit protection mechanisms. Additionally, they are often equipped with intelligent control functions, allowing for remote monitoring and control, which is crucial for maintaining the safety and stability of the power supply system in the coal mine and facilitating the overall operation of the mining activities.

1. System Overview

The fully mechanized mining and road heading monitoring system is one of the core parts of the comprehensive automation of coal mines. It is mainly used for real-time monitoring and control of the operating status of equipment in the coal mining and roadway driving working faces. By installing various sensors on equipment such as shearers, scraper conveyors, and road headers, such as position sensors, pressure sensors, and temperature sensors, the working parameters of the equipment can be accurately obtained.

2. Functions and Roles

● Equipment Status Monitoring: For example, the position sensor on the shearer can determine the position of the shearer in the working face, facilitating the rational planning of the coal mining path. The temperature sensor can monitor the temperature of key components such as motors in real time. When the temperature exceeds the set threshold, the system will issue an alarm to prevent the equipment from being damaged due to overheating.

● Automated Control: It can realize the automatic cutting control of the shearer. According to parameters such as the thickness and hardness of the coal seam, the system automatically adjusts the cutting speed and height of the shearer, improving the efficiency and quality of coal mining. At the same time, the advancing speed of the roadheader can also be automatically controlled to ensure the smooth progress of the roadway driving work.

1. System Overview

The ventilation monitoring system is crucial for the safe production in coal mine shafts. It is mainly responsible for monitoring the ventilation parameters underground, including wind speed, wind pressure, gas concentration, carbon monoxide concentration, etc. The system consists of ventilation fan monitoring equipment, gas sensors, and a data transmission network.

2. Functions and Roles

● Ventilation Fan Monitoring: Monitor the running status of ventilation fans in real time, such as rotational speed, motor current, and bearing temperature. Through the analysis of these parameters, potential faults of ventilation fans can be detected in advance to ensure the stable operation of ventilation fans and provide continuous fresh air underground.

● Harmful Gas Monitoring: Gas is one of the most dangerous gases in coal mine shafts. The ventilation monitoring system can detect the gas concentration in real time. When the gas concentration reaches the alarm value, the system will immediately issue an alarm and automatically take measures, such as increasing the ventilation volume or cutting off the power supply of some electrical equipment, to prevent gas explosion accidents. Monitoring the carbon monoxide concentration is also equally important as it can detect potential risks such as underground fires in a timely manner.

1. System Overview

The water supply and drainage monitoring system in coal mine shafts is mainly used to manage and control the water supply and drainage processes underground. It includes multiple subsystems such as water supply pipeline pressure monitoring, water level monitoring, and water pump running status monitoring.

2. Functions and Roles

● Water Supply Monitoring: Monitor the pressure of water supply pipelines to ensure that there is sufficient water pressure at each water consumption point underground. Meanwhile, by monitoring the water quality, the quality of the supplied water can be ensured to meet the requirements and satisfy the water demand for equipment cooling, spray dust suppression, and other purposes underground.

● Drainage Monitoring: If the accumulated water in the mine shaft is not drained in a timely manner, it will affect the normal production of the coal mine and even cause safety accidents. The water level sensor can monitor the water level of the sump in real time. When the water level reaches the set value, the drainage pump will automatically start to drain water. Meanwhile, the running status of the drainage pump is monitored, including parameters such as motor current and water pump flow rate, to ensure the efficient operation of the drainage pump.

1. System Overview

The power supply monitoring system is an important guarantee for the power supply in coal mine shafts. It can monitor underground substations, distribution boxes, and the power consumption of various electrical equipment. It is equipped with voltage sensors, current sensors, and power factor meters to collect detailed electrical parameters.

2. Functions and Roles

● Power Quality Monitoring: It continuously tracks parameters like voltage stability and power factor. Any fluctuations in voltage that might affect the normal operation of electrical equipment can be detected promptly. For example, if the voltage drops below a certain level, it could cause motors to run inefficiently or even malfunction. By monitoring the power factor, measures can be taken to improve power utilization efficiency and avoid unnecessary energy losses.

● Fault Detection and Protection: In case of short circuits, overloads, or other electrical faults, the system can quickly identify the problem location. It can then trigger corresponding protection mechanisms, such as automatically disconnecting the faulty circuit to prevent damage to electrical equipment and reduce the risk of electrical fires or other safety hazards in the mine.

● Load Management: By analyzing the power consumption data of different equipment and areas in the mine, it helps in optimizing the distribution of power loads. This ensures that the power supply system can meet the power demands of various operations while avoiding overloading specific circuits or transformers, thus maintaining the stability of the entire power supply network.

1. System Overview

The transportation monitoring system focuses on monitoring the operation of coal mine transportation equipment, including belt conveyors, mine cars, and hoisting equipment. Sensors are installed on these transportation devices to gather information about speed, load, and running status.

2. Functions and Roles

● Conveyor Belt Monitoring: For belt conveyors, speed sensors ensure that the belt is running at the correct speed. If the speed deviates from the normal range, it might indicate problems like belt slippage or motor failure. Load sensors can measure the amount of coal being transported on the belt to prevent overloading, which could damage the conveyor structure or lead to spillage. Additionally, monitoring the temperature of the conveyor's key components like rollers and motors helps in early detection of potential overheating issues and allows for timely maintenance.

● Mine Car and Hoisting Equipment Monitoring: In the case of mine cars, position sensors track their movement along the tracks to ensure smooth operation and prevent collisions. For hoisting equipment used in shafts, it monitors parameters such as the lifting speed, load weight, and the working condition of the wire rope. This guarantees the safe and efficient transportation of coal and personnel between different levels of the mine. If any abnormal situation occurs, such as excessive load or abnormal speed during the hoisting process, the system will issue an alarm and take necessary safety measures.

1. System Overview

The boiler room monitoring system is designed to oversee the operation of boilers in the coal mine, which are mainly used for heating or providing steam for certain processes. It includes sensors for monitoring parameters like steam pressure, water level, fuel consumption, and flue gas emissions.

2. Functions and Roles

● Boiler Operation Monitoring: The water level sensor in the boiler is crucial to ensure that the water level remains within a safe range. Too low a water level can cause the boiler to overheat and even explode, while too high a water level may affect the heating efficiency. Steam pressure sensors monitor the pressure of the generated steam. When the pressure reaches the set upper limit, safety valves can be automatically controlled to release pressure to avoid dangerous situations. Monitoring fuel consumption helps in optimizing the combustion process and managing energy usage.

● Emission Monitoring: By detecting the components and concentrations of flue gas emissions, such as sulfur dioxide and nitrogen oxides, the system can ensure that the boiler's operation complies with environmental protection requirements. If the emissions exceed the permitted standards, appropriate adjustments can be made to the combustion conditions or pollution control devices can be activated to reduce environmental pollution.

1. System Overview

The coal preparation automation system is applied in the process of coal processing to improve the quality of coal products. It involves multiple processes like crushing, screening, washing, and drying. Automation technologies are integrated to control and monitor these processes precisely.

2. Functions and Roles

● Process Control: In the crushing process, the system can adjust the crusher's operation parameters according to the size requirements of the coal feedstock to ensure that the coal is crushed to the appropriate particle size. During the screening process, sensors detect the size distribution of coal particles on the screens and control the vibration frequency and inclination angle of the screens to improve the screening efficiency. In the coal washing process, it precisely controls the water flow, slurry density, and other parameters to achieve better separation of impurities from the coal.

● Quality Assurance: By continuously monitoring the quality parameters of the coal at different stages of the preparation process, such as ash content and sulfur content, the system can make real-time adjustments to optimize the process and ensure that the final coal products meet the required quality standards. This is of great significance for improving the economic benefits of the coal mine and meeting the market demand for high-quality coal.
