Single Station Multi Wire Saw

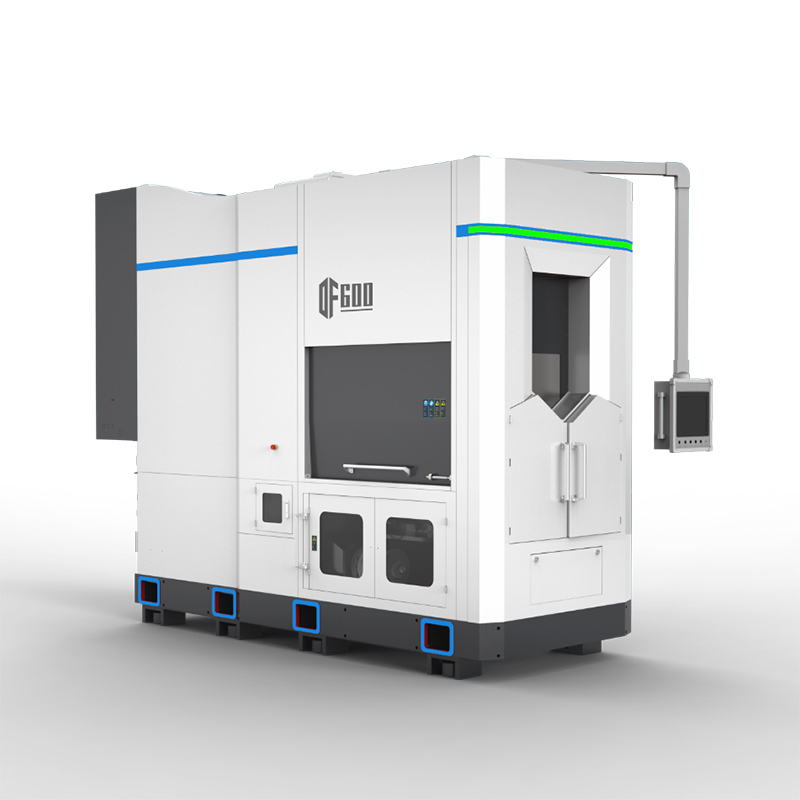

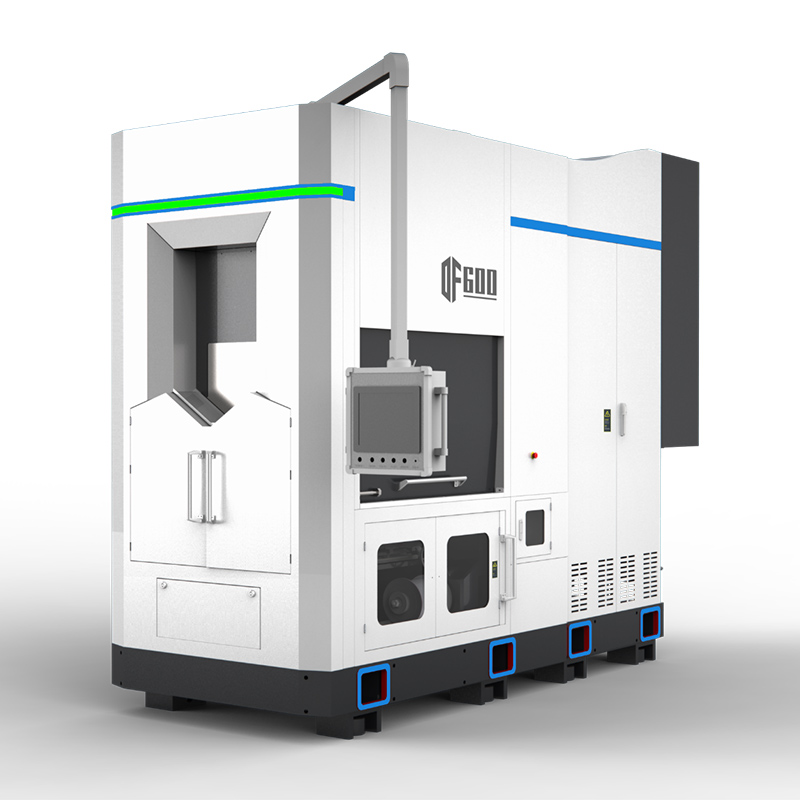

Diamond Multi-wire Cutting Equipment DF300/600

The DF300/600 multi-wire cutting equipment is specifically designed for slicing and processing hard and brittle materials like rare earth permanent magnets, optical glass, and quartz crystals. It is noted for its reliable functionality, high processing dimensional accuracy, and excellent product surface quality.

product details

Product Features

Diamond-Multi-wire-Cutting-Equipment-DF3002

7 Jan 2019

The equipment features an overall casting structure with a high damping coefficient and excellent damping performance.

Its stable base design supports high line speeds, fine wire applications, and precise tolerances.

Rollers utilize high-precision, high-rigidity cone positioning to effectively control cable network oscillations.

Optimized guide wheel distances minimize torsional forces and tension fluctuations during winding.

The retractable reel, positioned under the cutting chamber, ensures stable operation to meet demands for high wire speed, quality cuts, and reduced wire consumption.

It employs a standard universal wire wheel (PV600 reinforced I-shaped wheel) for wire release, eliminating the need for rewinding.

Technical Parameters

Project	Content	Technical parameters
Model	Model	DF300	DF600
Processing capacity	Max processing billet size	200x300x160mm	160x600x160mm
Processing capacity	Number of stations	1	1
Roller specifications	Roller outer diameter × glue length × quantity	（Ф200±10 mm ）×310×3	（Ф170±10 mm ）×610×3
Diamond thread	Diamond wire diameter	Ф0.08-φ0.25	Ф0.08-φ0.25
	Max line storage capacity	40 km (φ0.25mm)	40 km (φ0.25mm)
	Max round-trip routing speed	2400 m/min	2100 m/min
Workbench	Workbench lifting stroke	300 mm	300 mm
	Cutting method	Vertical downward feed	Vertical downward feed
	Plate clamping	Automatic	Automatic
	Cutting feed speed	0.1-99.9 mm/min	0.1-99.9 mm/min
Cutting fluid	Cutting fluid	Water-based or oil-based cutting fluid	Water-based or oil-based cutting fluid
	Liquid storage capacity	420L	420L
	Pump flow	12000 L/H	12000 L/H
Power/air source	Power supply	380V±10%、50Hz	380V±10%、50Hz
	Power	120 Kw	120 Kw
	Air source	≥0.4 MPa	≥0.4 MPa
Dimensions and weight	Dimensions (l x w x h)	4000× 1600 ×3200 mm	3700 × 1650 ×3300 mm
Dimensions and weight	Weight	10000 Kg	10000 Kg
