Single Wire Saw

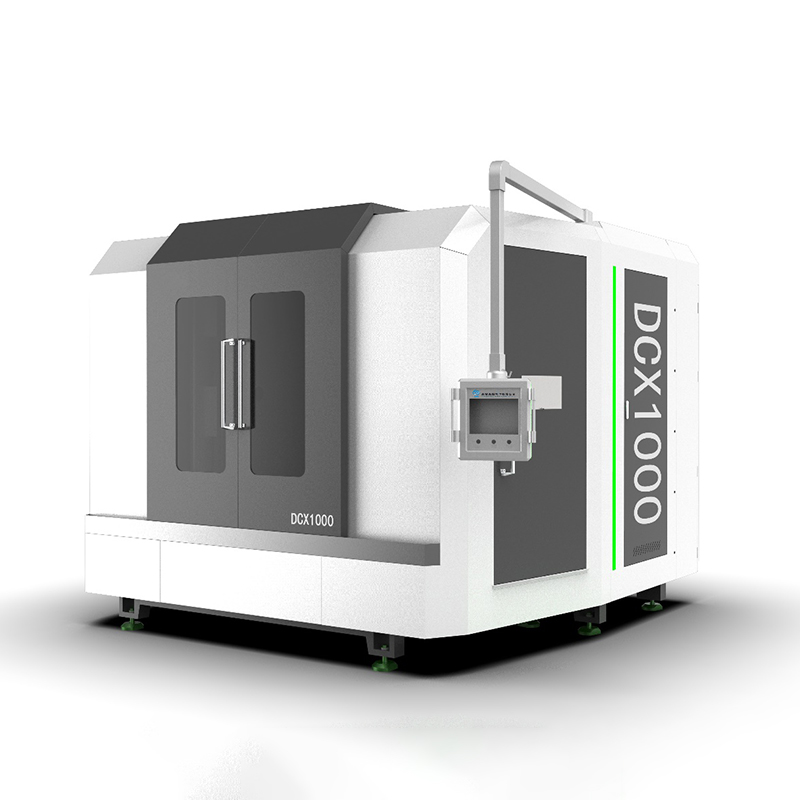

Diamond Single Wire Cutting Equipment DCX1000
Product Features
01
7 Jan 2019
Industrial Swing Amplification: Cuts 30% faster than the DCX800, with enhanced wire tension control for 1000x1000x1000mm workpieces.
Dual Cooling System: Prevents overheating during prolonged runs, extending wire lifespan by 40%.
Automated Material Handling: Compatible with robotic arms for continuous 24/7 production lines.
Durability Focus: Reinforced cast-iron frame withstands vibrations in high-intensity environments.
Data-Driven Analytics: Built-in IoT sensors monitor wear and predict maintenance needs.

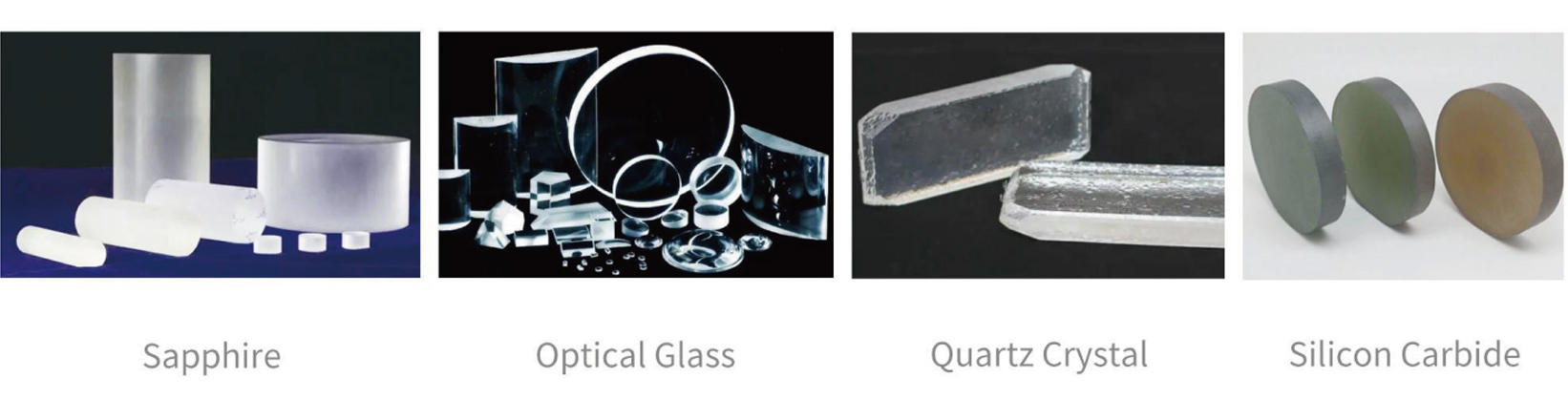

Applications: Mass production of solar silicon ingots, architectural stone cutting (e.g., sapphire countertops), and aerospace-grade ceramic component fabrication.
Technical Parameters
|
Project |
Content |
Technical parameters |
|
Model |
Model |
DCX1000 |
|
Processing capacity |
Max processing billet size |
1000×1000×1000mm |
|
Number of stations |
1 |
|
|
Diamond thread |
Diamond wire diameter |
Ф0.25-φ0.60 |
|
Max line storage capacity |
20 km (φ0.25mm) |
|
|
Max round-trip routing speed |
1200 m/min |
|
|
Cutting method |
Cutting method |
The cutting line drops in parallel or rocking down |
|
Max line swing angle |
±30° |
|
|
Rotary cutting (with rotating tooling) |
Rotating cutting, maximum sample size 8 inches, 360° rotation |
|
|
Cutting fluid |
Cutting fluid |
Water-based or oil-based cutting fluid |
|
Liquid storage capacity |
355L |
|
|
Pump flow |
200L/min |
|
|
Power supply |
Power supply |
380V±10%、50Hz |
|
Power |
25 Kw |
|
|
Dimensions and weight |
Dimensions (L x W x H) |
3470 × 3500 ×3200 mm |
|
Weight |
12000 Kg |
