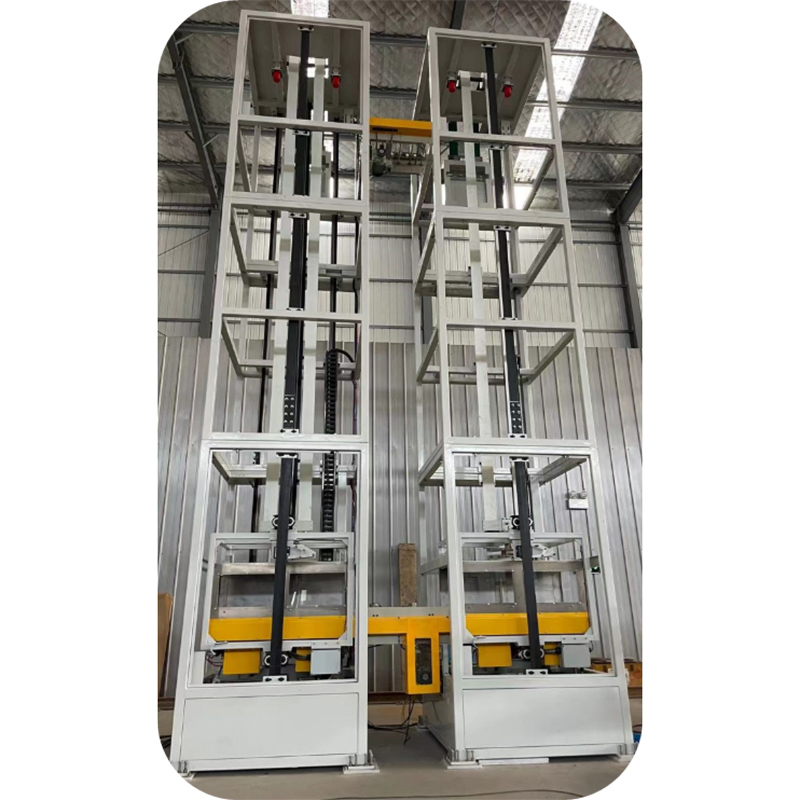

Robust Cassette Lifter for Efficient Material Transfer
Product Features and Advantages
01
7 Jan 2019
Synchronous Belt Lifting: Utilizes a synchronous belt for lifting, which effectively avoids powder pollution caused by metal friction. This ensures a clean and dust-free operation, maintaining the integrity of the powder and the working environment.
Customizable Double Cassette Lifting: Can be customized for double cassette lifting. With a single cassette cycle time as short as 25s, it enhances the overall productivity and throughput of the production line.
Servo-Driven for Smooth Operation: Equipped with a servo drive system, it provides smooth and stable operation. The mature structure of the lifter ensures reliable performance and minimal vibration, reducing the risk of damage to the cassettes and the conveyed materials.
Fully Sealed Structure: The fully sealed design of the lifter has a minimal impact on the surrounding environment. It prevents powder leakage and contamination, meeting strict environmental and safety standards.
Customizable Design: Can be tailored according to customer requirements. The lifting height can reach up to 6 meters, allowing for seamless integration into different factory layouts and production processes.
Reciprocating Lifter Details
The Reciprocating Lifter mainly consists of a lifting system and a roller conveyor.
• It functions similar to an elevator in our daily lives, mainly used for transporting products from the first floor to the third floor or vice versa.
• The conveying principle involves a hopper that moves up and down reciprocally. Inside the hopper, there is a roller conveyor. Goods are transported onto the hopper of the lifter via the roller conveyor, and the hopper then moves up and down to the designated floor.

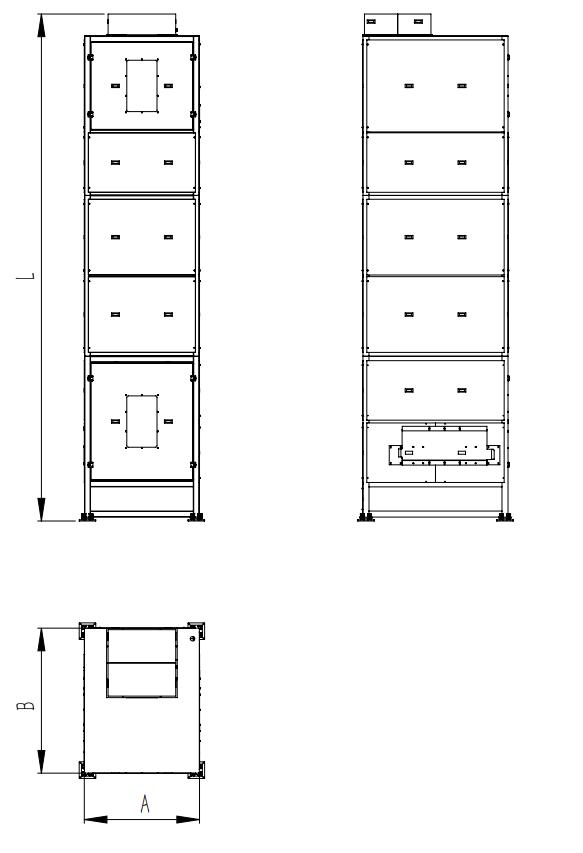

Technical Parameters
|
Technical Parameter |
Details |
|
Conveying Unit Load Capacity (kg) |
3000 |
|
Lifting Speed (m/min) |
10 - 90 (depending on the load) |
|
Lifting Height (m) |
Maximum 20 |
|
Optional Mounted Conveyor - Load capacity |
Designed according to customer needs |
|
Optional Mounted Conveyor - Conveying speed |
Designed according to customer needs |
|
Optional Mounted Conveyor - Conveyor size |
Designed according to the size of the conveyed items |
|
Optional Mounted Conveyor - Options |
Chain line, speed multiplier line, belt line, roller line, telescopic fork, etc. |
|
Power Supply |
380V/3-phase/50Hz |
|
Conveying Direction |
C-type/Z-type/E-type/F-type |
|
Drive Method |
Chain drive/Belt drive |
|
Motor Power (kW) |
Designed according to customer needs |
Advantages of Different Conveying Directions

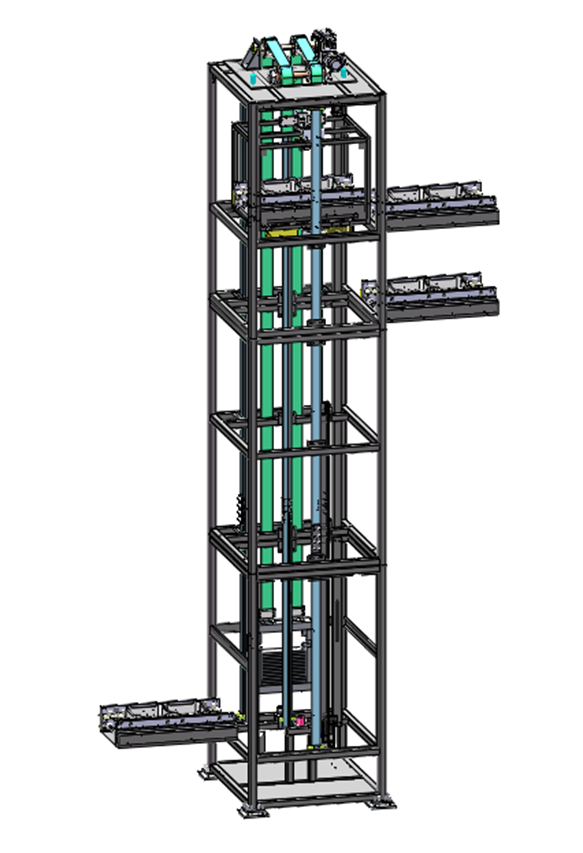

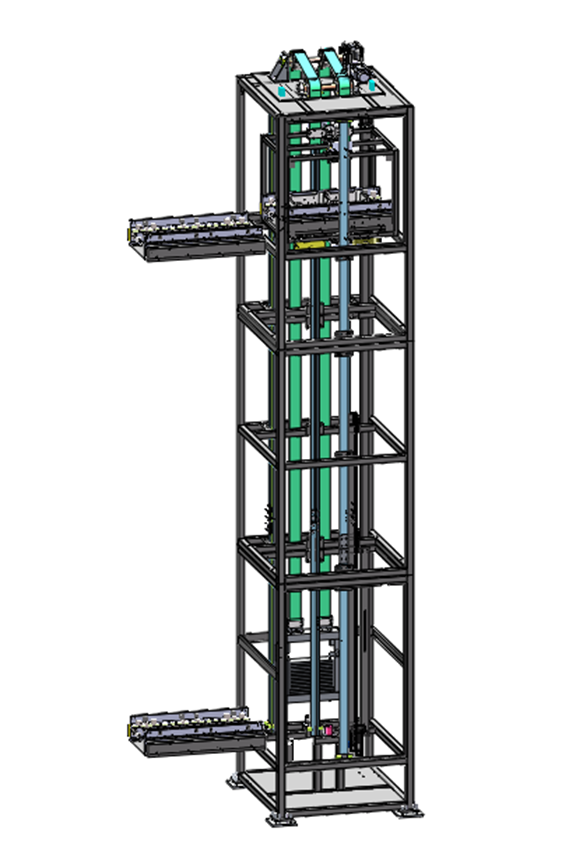

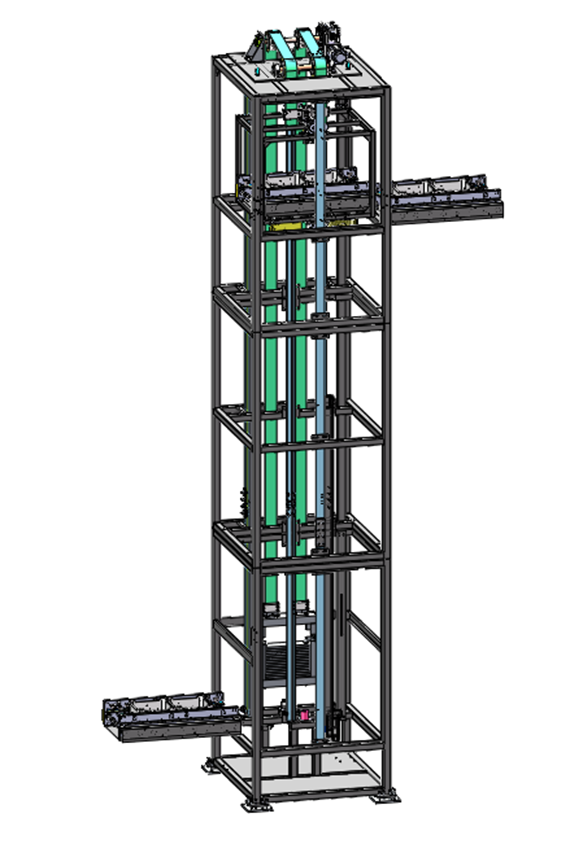

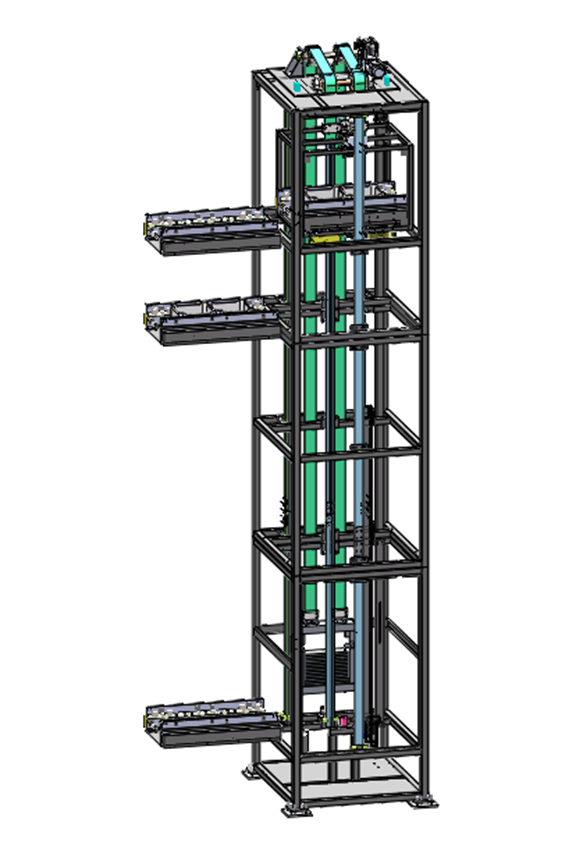

C-type: Characterized by the entrance and exit on the same side; single entry and single exit.
Z-type: Characterized by the entrance and exit on different sides; single entry and single exit.
E-type: Characterized by the entrance and exit on the same side; single entry and multiple exits.
F-type: Characterized by the entrance and exit on different sides; single entry and multiple exits.
This equipment features a reasonable structure, smooth operation, high-speed and quiet performance, safety and reliability. With a load capacity of up to 3 tons and a lifting height of up to 20 meters, it is convenient and practical for installation and maintenance. It is an ideal cargo conveying equipment to replace cargo elevators. The standardized bridge box interface allows for flexible selection of various packaging boxes, pallets, trays, and other workpiece forms. Equipped with multiple safety devices such as anti-fall and interlock mechanisms, it ensures the safety of personnel and goods. It can be widely used in automated production industries such as automotive, food, tobacco, postal, chemical, light industry, machinery, electronics, food, warehousing, and logistics.
