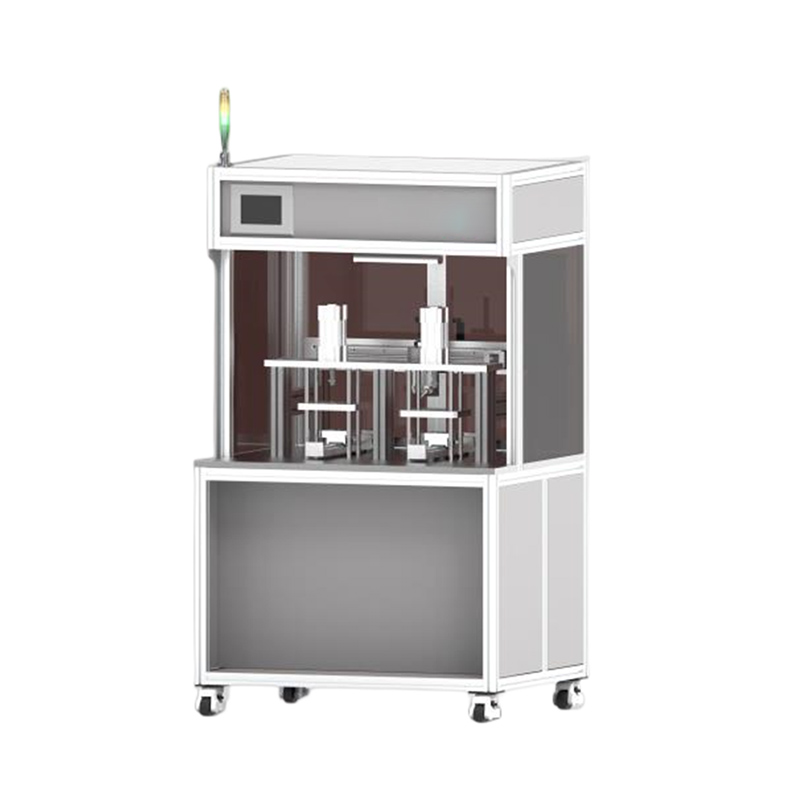

Terminal Automatic Bending Machine
Product Features
01
Mechanical Nut Handling:
Jaw Cylinder Structure: Ensures stable and reliable nut handling.
Detection Sensor: Verifies correct positioning for reclaiming and discharging nuts; triggers alarms if positions are incorrect.
Safety Monitoring:
Safety Gratings: Installed in the work area to prevent personal injury during operation.
Directional Placement: Includes sensors to ensure correct product positioning and prevent the production of scrap due to incorrect placement.
Technical Parameters
|
Item |
Parameter |
|
Applicable products |
IGBT（Can be customized according to specifications） |
|
Nut machine |
Standard M5 nut machine (optional) |
|
efficiency |
4PCS/minutes |
|
Equipment shape |
1000×800×1700mm |
|
Air source |
≥0.8MPa（φ10mm interface） |
|
Power supply |
AC220V、50Hz |
|
Total power |
≤650W |

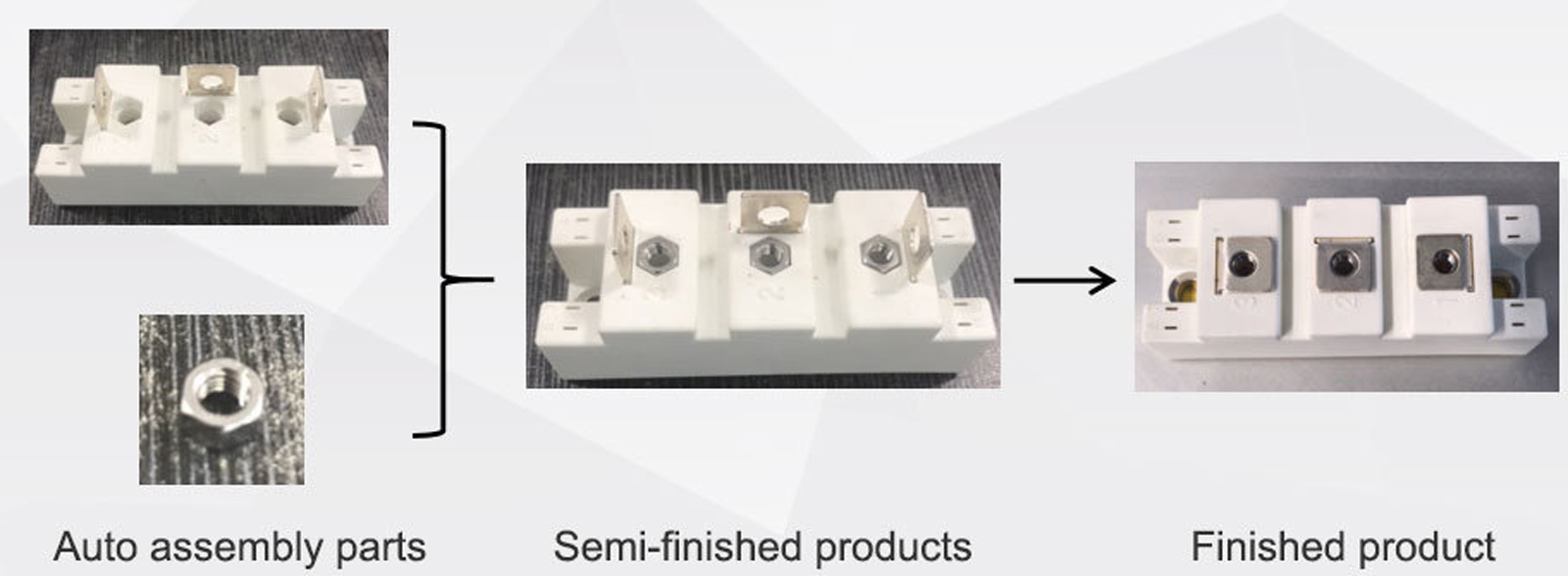

Product Packaging Process
Manual Placement:
● Modules are manually positioned on both sides of the station.
● Nuts are added to the nut machine as required.
Nut Placement Process:
→ Press "Start (right)" to initiate the process:
● Product moves to nut position 1.
● Nut shaft starts picking and placing nuts sequentially.
● Completes three nut placement operations at this station.
→ Press "Start (left)" to proceed:
● Product moves to nut position 2.
● Repeat nut picking and placing operation as done previously.
Tableting Process:
After nut placement:
● Products from left and right stations proceed to tablet pressing.
● Each product reaches tablet pressing stations 1, 2, and 3 sequentially.
● Completes tablet pressing operation at each station.
Completion and Return:
After tablet pressing is finished:
● Modules return to initial discharge position.
● Automatic operation indicator turns off, indicating the end of the process.
