Rocking Downwards Multi Wire Saw

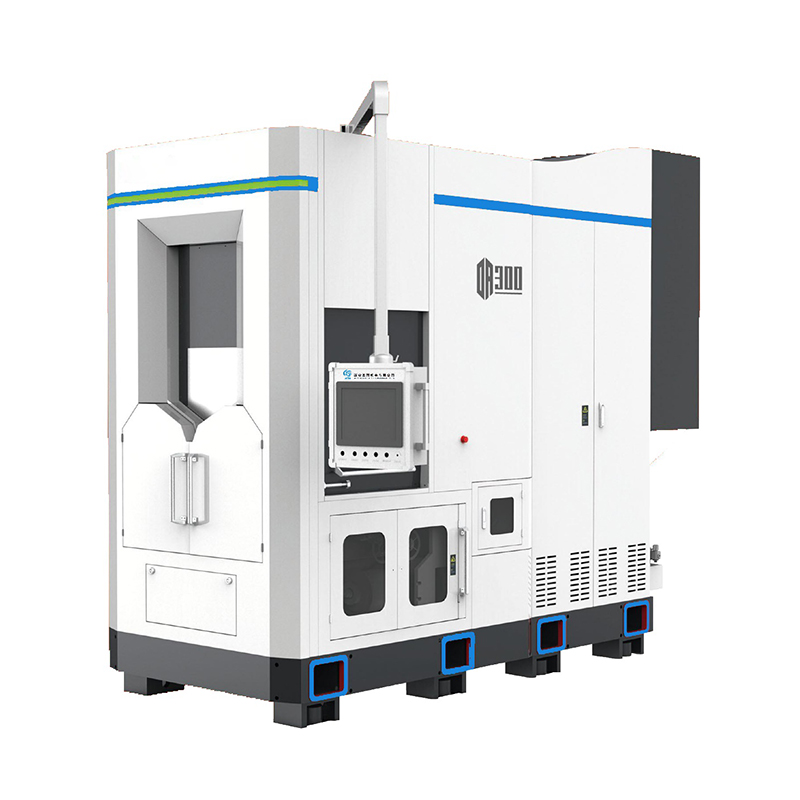

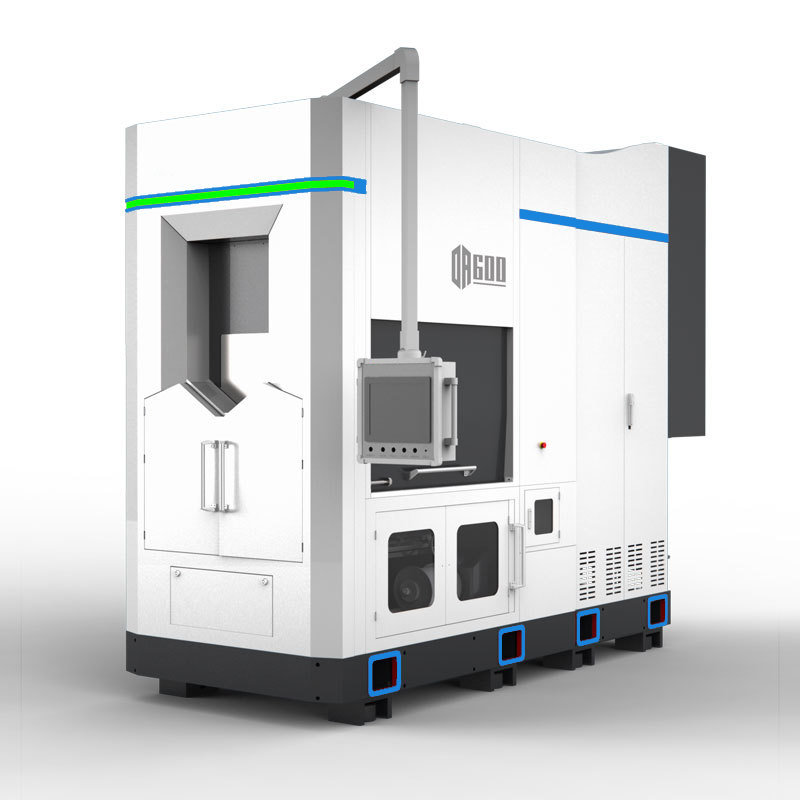

Diamond Multi-wire Cutting Equipment DA300/600

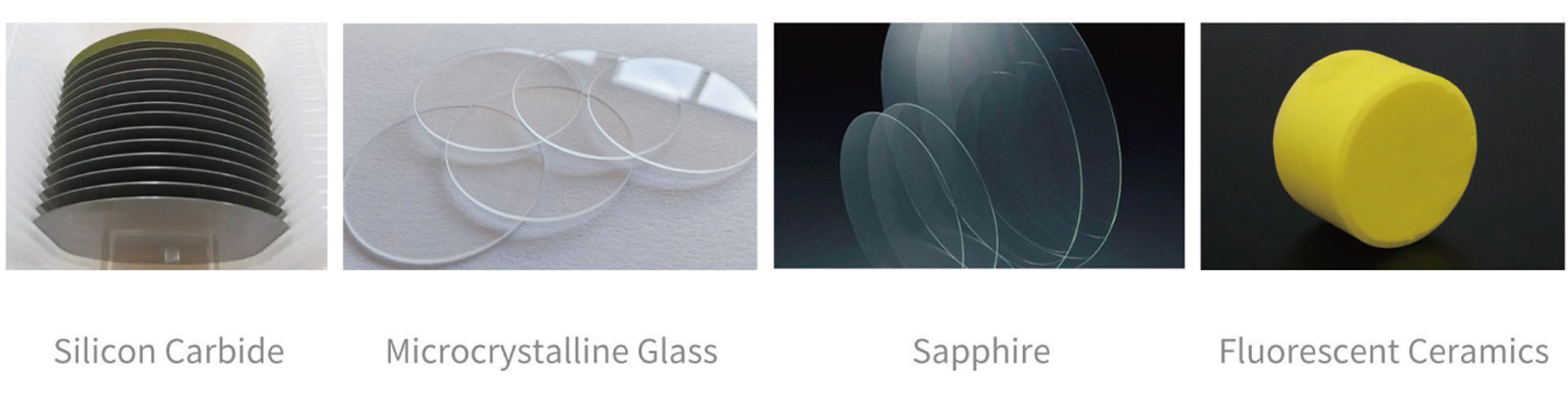

The DA300/600 Multi-Wire Cutting Equipment is specifically designed for slicing super-hard and brittle materials such as sapphire and semiconductor silicon carbide. It is capable of processing diameters ranging from 4 to 8 inches and can achieve a maximum processing length of 300mm or 600mm.

Key advantages include low material loss, high processing quality, efficient cutting, and excellent stability.

product details

Product Features

7 Jan 2019

Precision Cutting for 4~8-Inch Products: Customizable according to customer needs for precise cutting.

Swinging Workbench Design: Axis swings on the center of the workpiece, feeding from top to bottom for enhanced stability during cutting.

High Damping Coefficient Casting Structure: Ensures excellent damping performance and stability.

Stable Base Design: Provides a stable foundation for high line speed, fine cutting, and tolerance.

Optimized Guide Wheel and Winding Distance: Reduces torsional force and tension fluctuations.

High-Precision Roller with Cone Positioning: Effectively controls cable network jitter.

Flexible Switching Between Mortar Line and Diamond Line: Allows for versatile cutting methods based on application needs.

Technical Parameters

Project	Content	Technical parameters
Model	Model	DA300	DA600
Processing capacity	Max processing billet size	Ф205 x 300mm	Ф205 x 600mm
Processing capacity	Number of stations	1	1
Roller specifications	Roller outer diameter × glue length × quantity	（Ф200±10 mm ）×310×3	（Ф200±10 mm ）×610×3
Diamond thread	Diamond wire diameter	Ф0.10-φ0.25	Ф0.10-φ0.25
	Max line storage capacity	40 km (φ0.25mm)	40 km (φ0.25mm)
	Max round-trip routing speed	2400 m/min	2400 m/min
Workbench	Workbench lifting stroke	300mm	300mm
	Workbench swing	±10°	±10°
	Cutting method	Vertical downward feed	Vertical downward feed
	Cutting feed speed	0.1-99.9mm/min	0.1-99.9mm/min
Tension	Tension range	5-50 N	5-50 N
Tension	Tension system accuracy (when cutting)	±0.5 N	±0.5 N
Cutting fluid	Cutting fluid	Water-based cutting fluid	Water-based cutting fluid
	Liquid storage capacity	420L	420L
	Pump flow	200 L/min	200 L/min
Power/air source	Power supply	380V±10%、50Hz	380V±10%、50Hz
	Power	120 Kw	120 Kw
	Air source	≥0.4 MPa	≥0.4 MPa
Dimensions and weight	Dimensions (L x W x H)	4000 × 1600 ×3200 mm	4300 × 1650 ×3300 mm
Dimensions and weight	Weight	12000 Kg	13000 Kg
