Rocking Downwards Multi Wire Saw

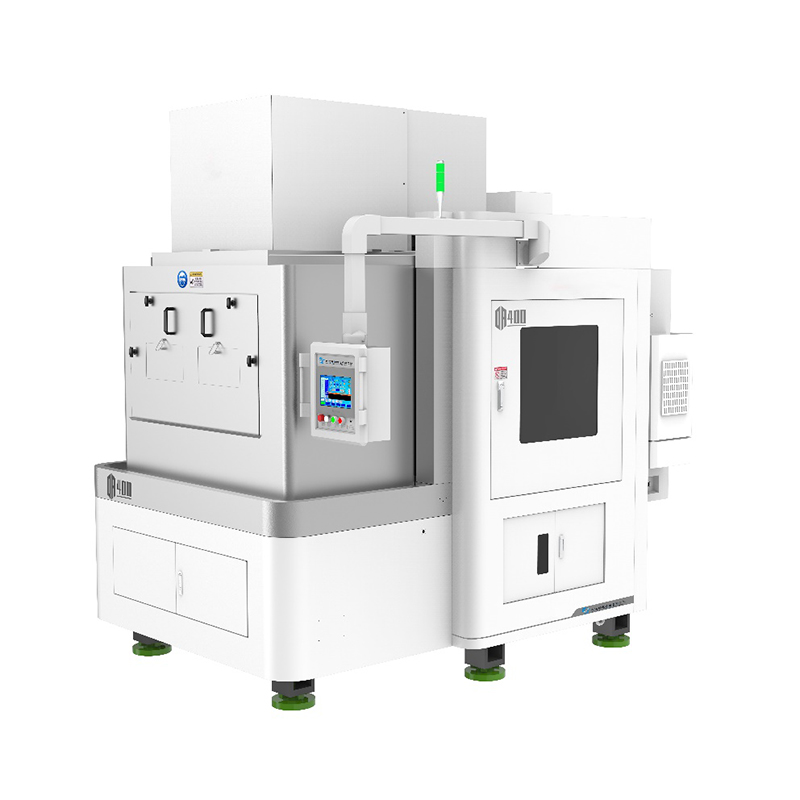

Diamond Multi-wire Cutting Equipment DA400

The DA400 Multi-Wire Cutting Equipment is specifically engineered for the batch processing of super-hard and brittle materials such as sapphire, special ceramics, and silicon nitride into straight pieces.

Featuring a double-station design, this equipment achieves cutting of super-hard and brittle materials by swinging the workpiece, thereby reducing the cutting area efficiently.

product details

Product Features

7 Jan 2019

Double-Station Workbench: Allows simultaneous cutting of two material plates.

Optional Three-Axis and Five-Axis Winding Methods: Enables cutting of both thick and thin slices.

High-Precision Roller and Retractable Reel: Utilizes cone positioning for precise control of wire network oscillation.

Electric Lifting Structure: Operating compartment features electric lifting and safety devices.

Open Three-Sided Cutting Chamber: Facilitates easy access for operation and maintenance.

Disconnection and Continuous Cutting Function: Equipped for both interrupted and continuous cutting operations.

Technical Parameters

Project	Content	Technical parameters
Model	Model	DA400
Processing capacity	Max processing billet size	Ф125×400mm
Processing capacity	Number of stations	2
Roller specifications	Roller outer diameter × glue length × quantity	（Ф165±10 mm ）×410×5
Diamond thread	Diamond wire diameter	Ф0.12-Ф0.25
	Max line storage capacity	40 km (φ0.25mm)
	Max round-trip routing speed	1200 m/min
Workbench	Workbench lifting stroke	245mm
	Workbench swing	±7°
	Cutting method	Vertical downward feed
	Cutting feed speed	0.1-99.9mm/min
Cutting fluid	Cutting fluid	Water-based or oil-based cutting fluid
	Liquid storage capacity	800L
	Pump flow	200L/min
Power/air source	Power supply	380V±10%、50Hz
	Power	50 Kw
	Air source	Using water-based cutting fluid, air pressure requirements≥0.35 MPa
Dimensions and weight	Dimensions (L x W x H)	3150 × 1900 ×2920 mm
Dimensions and weight	Weight	8000 Kg
