Double Stations Multi Wire Saw
Multi-Wire Saw Squarer Equipment CX3615
Product Features
01
7 Jan 2019
Double-Station Design: Provides large loading capacity for enhanced productivity.
Monolithic Core Frame: Ensures robust structural integrity.
Versatile Cutting Options: Suitable for both water cutting and oil cutting applications.

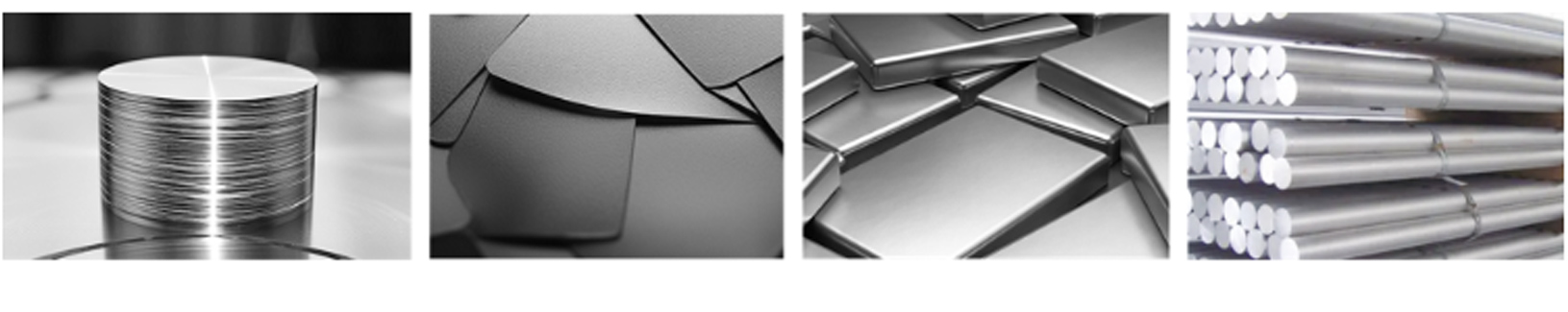

Large-Size Precious Metal Cutting: Offers tailored solutions for cutting large-size precious metal materials.
Technical Parameters
|
Item |
Content |
Parameters |
|
Model |
Model |
CX3615 |
|
Processing Capacity |
Maximum Processing Size |
360×1530×360mm |
|
Number of Stations |
2 |
|
|
Roller Specifications |
Outer Diameter × Slot Width × Quantity |
(¢140±10) mm × 1580mm × 5 (2 upper, 3 lower - five-axis) |
|
Diamond Wire |
Worktable Transverse Travel |
40mm |
|
Cutting Feed Speed |
0.1~99.9mm/min |
|
|
Maximum Traverse Line Speed |
1200m/min |
|
|
Reciprocating Cycle |
9 times per minute |
|
|
Wire Diameter |
¢0.10-¢0.35mm |
|
|
Wire Storage Capacity |
20km (¢0.35 diamond wire) |
|
|
Cutting Fluid |
Coolant Tank Capacity |
800L |
|
Pump Discharge Volume |
250×2L/min |
|
|
Power Supply |
Total Power |
77KVA |
|
Dimensions and Weight |
Dimensions |
Approx. 3960×2450×3300mm |
|
Machine Weight |
Approx. 16000Kg |
