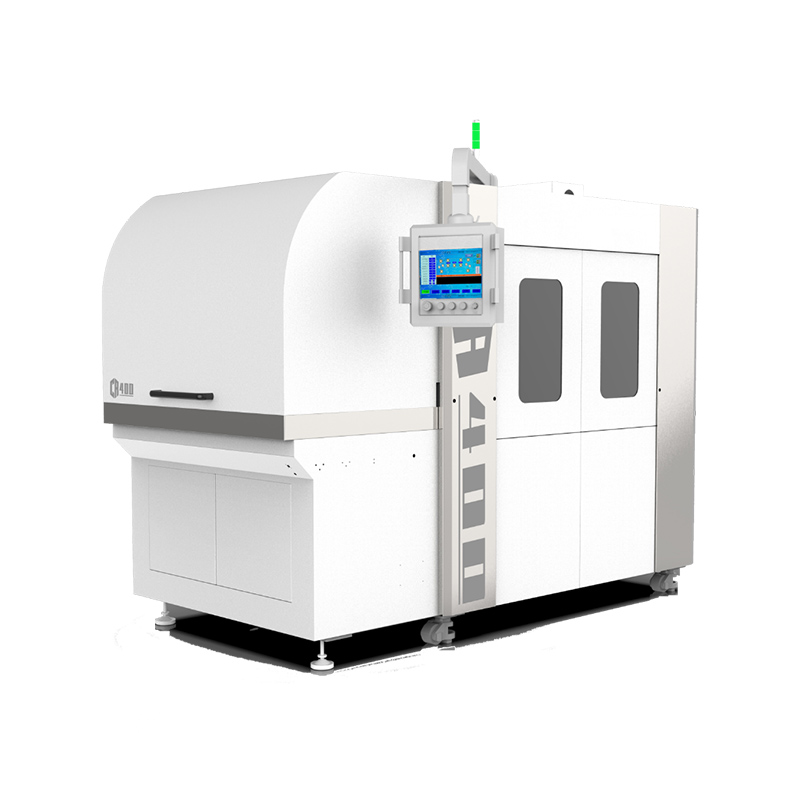

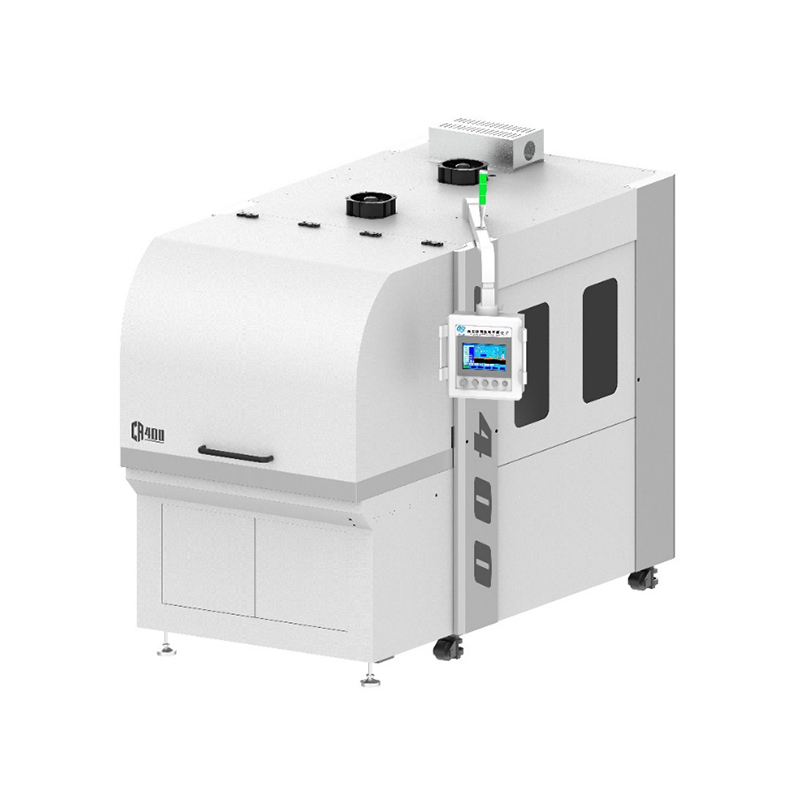

Rocking Multi-wire Cutting Equipment CA400
Product Features
Technical Parameters
|
Project |
Content |
Technical parameters |
|
Model |
Model |
CA400 |
|
Processing capacity |
Max processing billet size |
Ф125×260mm |
|
Number of stations |
1 |
|
|
Roller specifications |
Roller outer diameter × glue length × quantity |
（Ф145±10 mm ）×266×3 |
|
Diamond thread |
Diamond wire diameter |
Ф0.12-Ф0.25 |
|
Max line storage capacity |
20 km (φ0.25mm) |
|
|
Max round-trip routing speed |
900 m/min |
|
|
Workbench |
Workbench lifting stroke |
150mm |
|
Workbench swing |
±7° |
|
|
Cutting method |
Vertical upward feed |
|
|
Cutting feed speed |
0.1-99.9mm/min |
|
|
Cutting fluid |
Cutting fluid |
Water-based or oil-based cutting fluid |
|
Liquid storage capacity |
220L |
|
|
Pump flow |
200L/min |
|
|
Power/air source |
Power supply |
380V±10%、50Hz |
|
Power |
30 Kw |
|
|
Air source |
Using water-based cutting fluid, air pressure requirements≥0.35 MPa |
|
|
Dimensions and weight |
Dimensions (L x W x H) |
3100 × 1490 ×2360 mm |
|
Weight |
4000 Kg |
