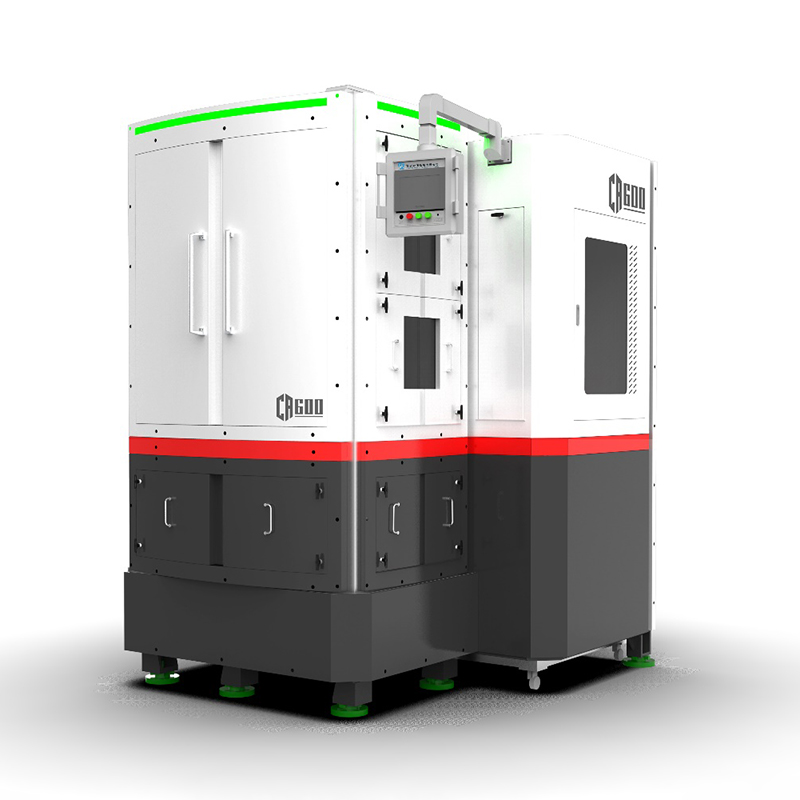

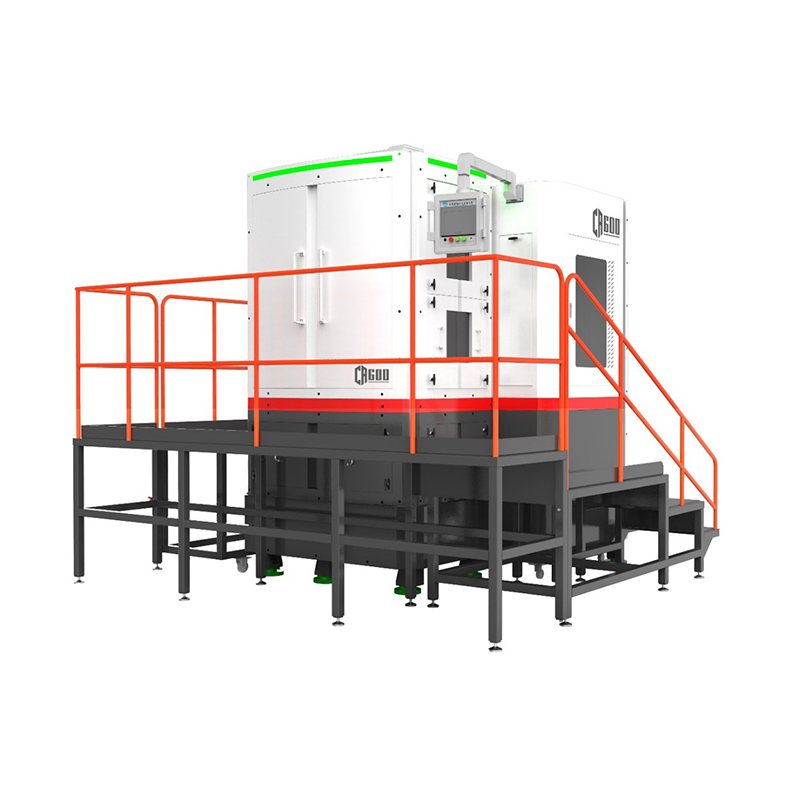

Rocking Multi-wire Cutting Equipment CA600
Rocking Downwards Multi Wire Saw

Rocking Multi-wire Cutting Equipment CA600

The CA600 Multi-Wire Cutting Equipment is designed for slicing super-hard and brittle materials including sapphire, quartz crystals, special ceramics, and silicon nitride.

It is suitable for cutting medium and large-scale materials, offering high cutting efficiency, precise slicing accuracy, stable slicing quality, and cost-effectiveness. The equipment features a four-roller design structure and is capable of cutting products thicker than 1mm.

    Contact Us
    product details

    Product Features

    01
    7 Jan 2019
    High Damping Coefficient Casting Structure: Roller frame provides excellent damping performance.
    Swinging Workbench Design: Axis swings on the center of the workpiece, ensuring stable cutting.
    Oil-Cooled Bushing Structure: Front and rear bearing boxes for rollers ensure high-speed equipment operation.
    Standard Universal Wire Release Wheel: Uses PV600 reinforced I-shaped wheel, eliminating the need for rewinding.
    Disconnection and Continuous Cutting Function: Capable of both interrupted and continuous cutting operations.

    Technical Parameters

    Project

    Content

    Technical parameters

    Model

    Model

    CA600

    Processing capacity

    Max processing billet size

    600×600×600mm

    Number of stations

    1

    Roller specifications

    Roller outer diameter × glue length × quantity

    （Ф170±10 mm ）×410×5

    Diamond thread

    Diamond wire diameter

    Ф0.12-Ф0.25

    Max line storage capacity

    30 km (φ0.20mm)

    Max round-trip routing speed

    1500 m/min

    Workbench

    Workbench lifting stroke

    750mm

    Workbench swing

    ±7.5°

    Cutting method

    Vertical upward feed

    Cutting feed speed

    0.1-99.9mm/min

    Cutting fluid

    Cutting fluid

    Water-based or oil-based cutting fluid

    Liquid storage capacity

    500L

    Pump flow

    200L/min

    Power/air source

    Power supply

    380V±10%、50Hz

    Power

    55 Kw

    Air source

    Using water-based cutting fluid, air pressure requirements≥0.4 MPa

    Dimensions and weight

    Dimensions (L x W x H)

    2850 × 2350 ×3200 mm

    Weight

    9500 Kg
