Double Stations Multi Wire Saw

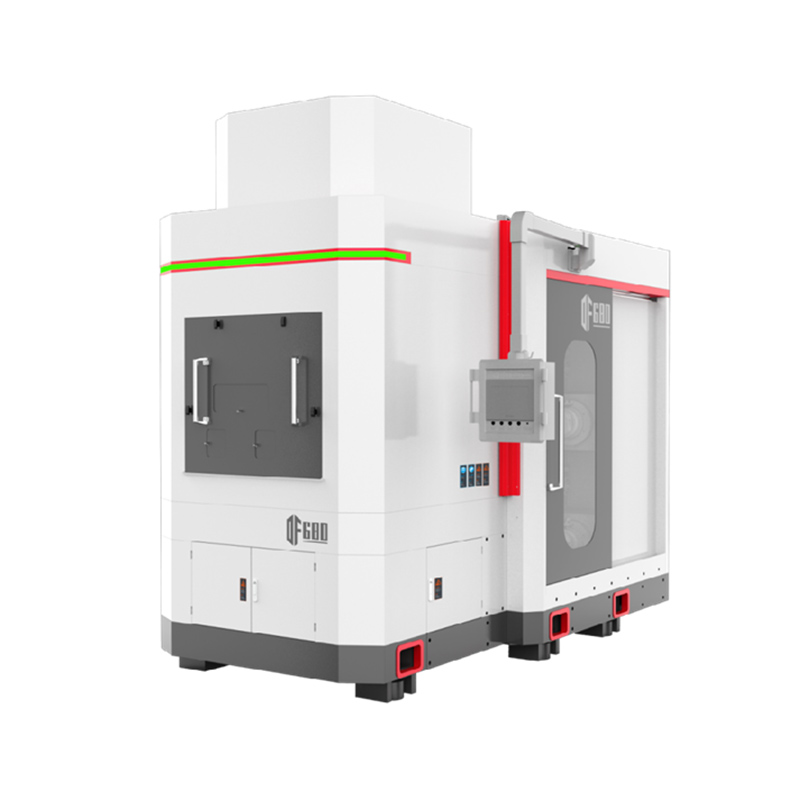

Diamond Wire Multi-wire Cutting Equipment DF680H
Product Features
01
7 Jan 2019
Dual-station workbench configuration: Allows simultaneous cutting of two sheets, enhancing operational efficiency.
Double cone positioning rollers: Ensures stable and reliable high-speed operation; quick disassembly reduces auxiliary time.
Cast-in-one-piece roller frame: Guarantees stability during high-speed rotation of the main spindle.
Reduced guide wheel design: Effectively lowers wire disconnection rates; dual-bearing structure improves operational efficiency.
Three-axis winding capability: Enables grooving, capable of cutting products up to 30mm thick.
Double cone small wire wheel structure for retractable reels: Lightweight with reliable positioning accuracy; oil-cooled jacketed bearing boxes require no maintenance after initial sealed installation.
Real-time monitoring and wire break protection system: Immediately stops operation upon wire breakage to prevent roller damage and product wastage.
Servo motor-driven control: Controls spindle operation, wire release, retrieval, alignment, cutting wire tension, and workbench feed for precise control.
Open cutting chamber: Provides easy access from three sides for convenient operation and maintenance.
Technical Parameters
|
Item |
Content |
Parameter |
|
Model |
Model |
DF680 |
|
Processing Capacity |
Maximum Processing Size |
160×680×160mm |
|
Number of Stations |
2 |
|
|
Roller Specifications |
Outer Diameter * Slot Width |
(¢170±10) mm × 690 (Three-axis) |
|
Diamond Wire |
Back and Forth Travel Speed |
MAX 2100m/min |
|
Back and Forth Cycle |
9 times/minute |
|
|
Diameter of Diamond Wire |
¢0.10-¢0.25mm |
|
|
Wire Storage Capacity |
30Km (for ¢0.20 diamond wire) |
|
|
Workbench |
Workbench Lifting Stroke |
280mm |
|
Cutting Feed Speed |
0.1~99.9mm/min |
|
|
Cutting Fluid |
Coolant Tank Capacity |
800L |
|
Pump Discharge Volume |
250L/min |
|
|
Power/Air Supply |
Power Supply |
3-phase 380V, 50Hz |
|
Total Power |
≤115KVA |
|
|
Dimensions and Weight |
Dimensions (Length x Width x Height) |
3440×2440×2780mm |
|
Machine Weight |
12000Kg |
