Double Stations Multi Wire Saw

Diamond Wire Multi-wire Cutting Equipment CF680H

CF680H is a new dual-station high-end multi-wire cutting equipment designed by our company for customers cutting straight pieces in fields such as rare earth permanent magnets, semiconductor materials, quartz crystals, and precious metals—ideal for hard and brittle materials. The frame is cast in one piece to ensure equipment rigidity and stability. The four-roller direct drive design achieves high-precision cutting of products ranging from 0.5mm to 15mm in thickness.

product details

Product Features

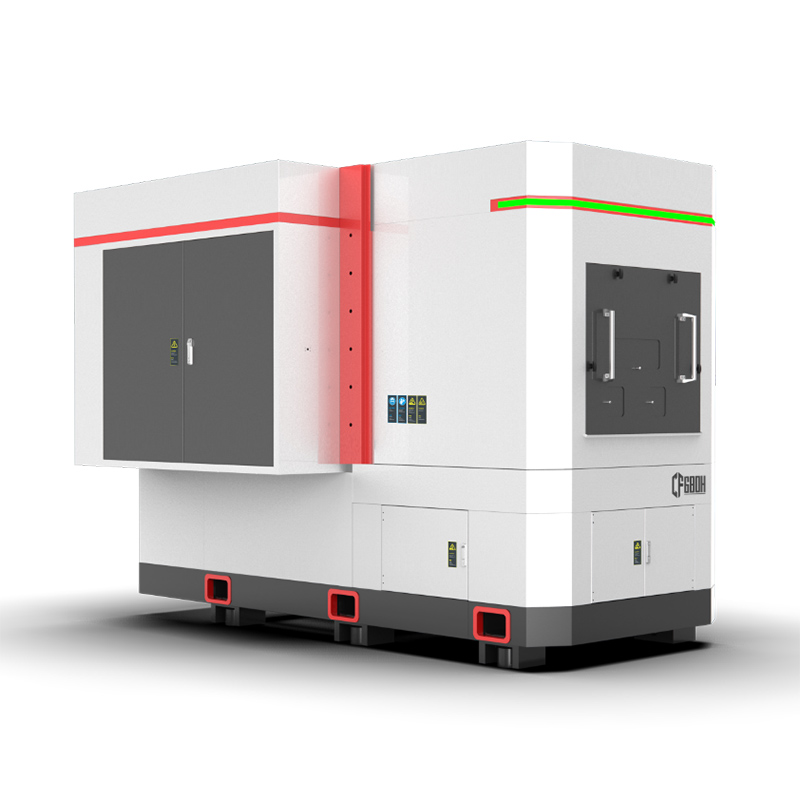

Diamond-Wire-Multi-wire-Cutting-Equipment-CF680H1

7 Jan 2019

Double-Station Configuration: Enables simultaneous cutting of two material sheets, significantly enhancing equipment efficiency.

Optimized Frame Design: Features a one-piece cast main frame to enhance rigidity and cutting stability.

High Line Speed: Capable of achieving speeds up to 2400m/min.

Efficient Electrical System: Optimized design reduces power consumption by 5% to 30%.

Large-Diameter, Lightweight Guide Wheel: Supports high-speed operation and use of fine diamond wires.

Precision Engineering: Roller and retractable reel with double cone positioning and oil-cooled jacket structure ensure stable, reliable operation.

Streamlined Guide Wheel: Reduces wire disconnection incidents.

Cutting Capabilities: Equipped with disconnection and continuous cutting functions for enhanced versatility.

Technical Parameters

Project	Content	Technical parameters
Model	Model	CF680H
Processing capacity	Max processing billet size	160×680×160mm
Processing capacity	Number of stations	2
Roller specifications	Roller outer diameter × glue length × quantity	（Ф170±10 mm ）×690×4
Diamond thread	Diamond wire diameter	Ф0.10-φ0.25
	Max line storage capacity	30 km (φ0.20mm)
	Max round-trip routing speed	2400 m/min
Workbench	Workbench lifting stroke	245 mm
	Cutting method	Vertical upward feed
	Cutting feed speed	0.1-99.9 mm/min
Cutting fluid	Cutting fluid	Water-based or oil-based cutting fluid
	Liquid storage capacity	800L
	Pump flow	200L/min
Power/air source	Power supply	380V±10%、50Hz
	Power	133.5 Kw
	Air source	Using water-based cutting fluid, air pressure requirements≥0.4 MPa
Dimensions and weight	Dimensions (L x W x H)	3330 × 2220 ×2550 mm
Dimensions and weight	Weight	9500 Kg
