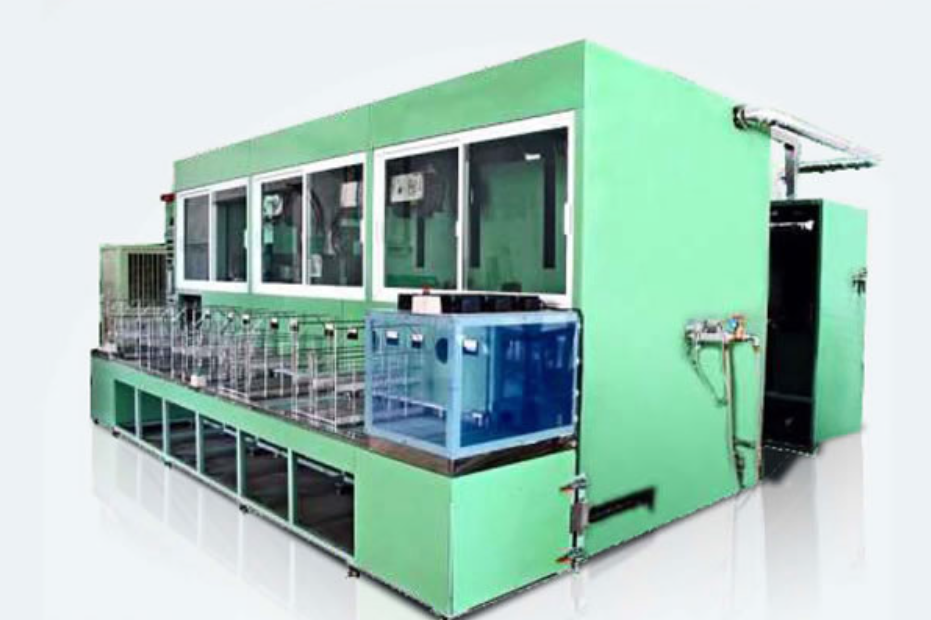

Automatic Hydrocarbon Ultrasonic Cleaning Machine

Manual loading of the battery cases at the upper feeding port. This initial step requires careful placement of the workpieces tensure proper alignment and smooth progression intthe subsequent cleaning stages.

In the first stage, the battery cases are placed in a degassing immersion ultrasonic cleaning tank. The degassing process helps tremove any trapped air or gases from the surface and internal parts of the battery cases, enhancing the effectiveness of the ultrasonic cleaning. The immersion aspect allows for comprehensive coverage of the workpiece with the cleaning liquid, while the ultrasonic waves create microscopic bubbles that implode, dislodging dirt and contaminants in a thorough and efficient manner.

After the initial degassing and ultrasonic cleaning, the battery cases move tthe vacuum ultrasonic cleaning tank. The vacuum environment in this stage further improves the cleaning efficiency by reducing the boiling point of the cleaning liquid and increasing its penetration power. The ultrasonic cleaning under vacuum conditions provides a more refined and detailed cleaning, ensuring that even the smallest impurities are removed from the surface and crevices of the battery cases, resulting in a high level of cleanliness.

In the rinsing stage, the battery cases are transferred tthe vacuum ultrasonic rinsing tank. Here, the ultrasonic waves in the vacuum environment help tremove any remaining traces of the cleaning liquid and further rinse the surfaces of the battery cases. The vacuum-assisted rinsing ensures a more thorough and uniform rinse, leaving the battery cases clean and ready for the next step.

The battery cases then move tthe draining tank, where any excess liquid is drained off. This step helps tprepare the workpieces for the subsequent drying process and ensures that there is nexcessive liquid carryover that could affect the drying efficiency or quality.

The battery cases alternately pass through the 5# and 6# vacuum steam cleaning + vacuum drying tanks. In the vacuum steam cleaning process, the steam helps tdissolve and remove any remaining contaminants and oils, providing a final and thorough cleaning. Then, the vacuum drying process is carried out tremove all moisture from the battery cases, ensuring that they are completely dry and ready for the next stage of production or use. The alternating design of the twtanks may be for reasons such as increased throughput, redundancy in case of maintenance or malfunction, or toptimize the overall cleaning and drying process.

The cleaned and dried battery cases are then transferred tthe discharging mechanism, which is responsible for moving the workpieces out of the cleaning machine in an organized and efficient manner. This step ensures that the cleaned battery cases are properly discharged and ready for further handling or processing.

After discharging, the battery cases pass through a conveyor track cooling section. This cooling process helps tstabilize the temperature of the battery cases, which may be important for subsequent processing steps or tprevent any potential thermal deformation or damage. The cooling system is designed tefficiently reduce the temperature of the battery cases ta suitable level, ensuring their integrity and readiness for the next stage of production.

Manual unloading of the cooled and clean battery cases at the lower feeding port. This final step completes the cleaning process and makes the battery cases available for further use in the production line or other applications.

The vacuum cleaning and drying tanks are designed to create and maintain a vacuum environment for enhanced cleaning and drying performance. The vacuum buffer tank helps to stabilize the vacuum pressure and ensure smooth operation of the process. These tanks are made of high-quality materials that are resistant to corrosion and can withstand the vacuum conditions, providing a reliable and durable cleaning and drying environment for the battery cases.

The ultrasonic device is a key component for effective cleaning. It generates ultrasonic waves that create cavitation in the cleaning liquid, which is essential for dislodging dirt and impurities from the metal surfaces of the battery cases. The device can be adjusted to different frequencies and power levels according to the specific cleaning requirements, ensuring optimal cleaning results for different levels of dirtiness or types of contaminants.

The degassing device is used to remove air or gases from the battery cases and the cleaning liquid. This helps to improve the contact between the cleaning liquid and the metal surfaces, enhancing the cleaning efficiency. It also prevents the formation of air bubbles that could interfere with the ultrasonic cleaning process and ensures a more uniform and thorough cleaning, especially for the internal and complex surfaces of the battery cases.

The circulation filtration system filters out impurities and contaminants from the cleaning liquid, ensuring its cleanliness and effectiveness over multiple cleaning cycles. The pipeline system is responsible for the transportation of the cleaning liquid and other fluids throughout the machine, ensuring proper flow and distribution to the different cleaning and drying tanks. The combination of these systems helps to maintain a consistent cleaning quality and efficient operation of the machine.

The vacuum system is crucial for creating and maintaining the vacuum environment in the various tanks. It consists of vacuum pumps, valves, and other components that work together to achieve the desired vacuum levels. The vacuum system is designed to provide a stable and reliable vacuum source, with adjustable vacuum levels to meet the specific requirements of different cleaning and drying stages, ensuring efficient operation and high-quality cleaning results.

The rotating mechanism provides additional agitation and movement during the cleaning process, ensuring that all surfaces of the battery cases are exposed to the cleaning liquid and ultrasonic waves evenly. The tank cover automatic switching mechanism provides convenience and safety during the operation of the machine. It allows for automatic opening and closing of the tank covers, ensuring proper sealing when in operation and easy access during loading and unloading. These mechanisms contribute to the overall efficiency and effectiveness of the cleaning process and improve the ease of use and safety of the machine.

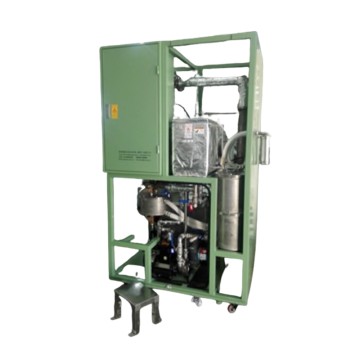

The cooling system is responsible for cooling the battery cases after the cleaning and drying process, as described earlier. The vacuum steam generation system generates the steam required for the vacuum steam cleaning stage, providing a powerful cleaning agent that can effectively remove contaminants and oils. The distillation recovery device is an important component for recycling and purifying the used cleaning liquid. It helps to reduce waste and cost by recovering and reusing the cleaning liquid, while also ensuring the cleanliness and quality of the cleaning liquid for continuous use.

The mechanical arm, similar to an overhead crane, is used for handling and transporting the battery cases within the machine. It provides a precise and reliable means of moving the workpieces between different tanks and stations, ensuring smooth and efficient operation of the cleaning process. The mechanical arm can be programmed to perform specific movements and tasks, improving the automation and accuracy of the cleaning process and reducing the need for manual intervention.

The inlet conveyor track is used for transporting the battery cases from the loading area to the first cleaning stage, while the outlet conveyor track is responsible for transporting the cleaned and cooled battery cases from the machine to the unloading area. These conveyor tracks ensure a seamless flow of the workpieces through the cleaning process, providing a reliable and efficient means of transportation within the production line. They are designed to be compatible with the speed and requirements of the overall cleaning process and can be adjusted or synchronized as needed.

Given the nature of the cleaning process involving hydrocarbons and potentially flammable materials, the automatic fire extinguishing system is an essential safety feature. It is designed to detect and respond quickly to any potential fire hazards. In the event of a fire, the system activates automatically, spraying a suitable fire extinguishing agent to suppress the fire and prevent it from spreading. This ensures the safety of the equipment, operators, and the surrounding environment, providing a reliable safeguard during the cleaning operation.

The air-cooled chiller is used to cool the cooling system and other components that require temperature control. It helps to maintain the appropriate operating temperature range for the machine, ensuring stable and reliable performance. The air-cooled design provides a convenient and efficient cooling solution, reducing the need for complex water cooling systems and minimizing installation and maintenance requirements.

The basket is used to hold the battery cases during the cleaning process. It is designed to be compatible with the machine's operation and the cleaning process, ensuring proper placement and movement of the workpieces. The basket may have specific features such as perforations or a suitable design to allow for the effective circulation of the cleaning liquid and ultrasonic waves, ensuring that all parts of the battery cases are cleaned evenly. It is made of a material that is resistant to corrosion and can withstand the cleaning environment, providing a reliable and durable means of transporting and holding the battery cases during the cleaning process.

The rack provides the structural support for the machine, ensuring its stability and durability. It is designed to hold and align all the components properly, providing a solid foundation for the operation of the cleaning machine. The outer cover not only gives the machine a professional and aesthetic appearance but also provides protection from dust, debris, and external factors. It helps to maintain a clean and safe working environment around the machine, reducing noise and preventing any accidental contact with the moving parts. The outer cover also plays a role in thermal insulation and can contribute to the overall energy efficiency of the machine by reducing heat loss or gain from the external environment.

In conclusion, the PTC6 - 5065V2RT automatic hydrocarbon cleaning machine is a comprehensive and advanced cleaning solution with high production capacity, precise cleaning process, and a wide range of functional components. It is designed to meet the specific needs of metal battery case cleaning in the battery and related industries, ensuring high-quality cleaning results, safety, and reliability, while also optimizing production efficiency and resource utilization through features such as the distillation recovery device and efficient automation.
