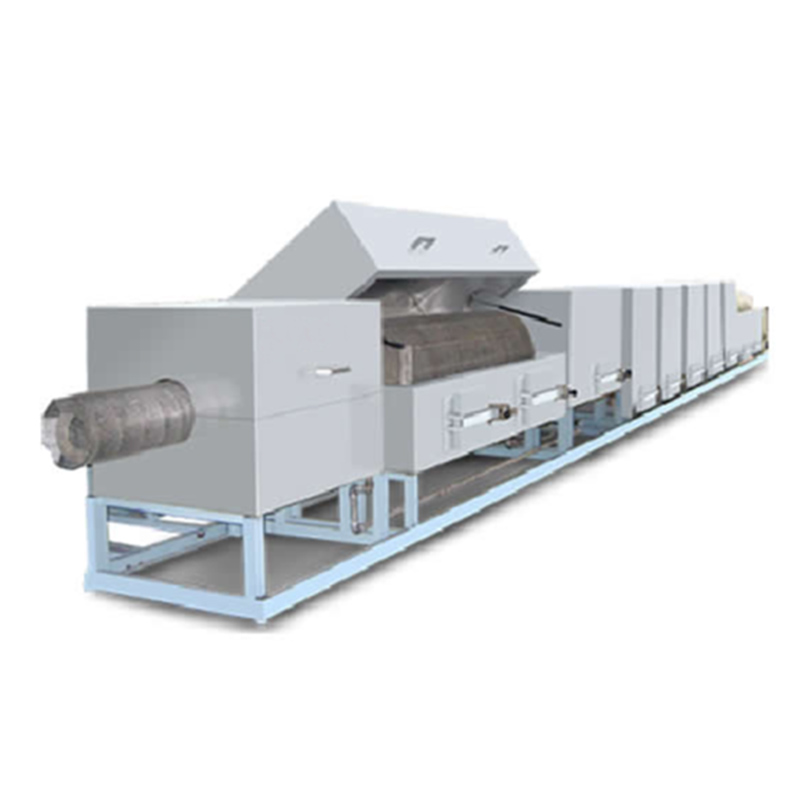

Cap Ultrasonic Cleaning Machine

The cleaned caps must be free of any oil or grease residues. This is crucial to ensure that the caps do not contaminate the contents they will be sealing, especially in applications where the product inside the container is sensitive to oil or requires a clean surface for proper sealing and storage.

All dirt and impurities must be completely removed from the caps. This includes any particles, dust, or other contaminants that may have adhered to the caps during production, transportation, or storage. A clean cap is essential for maintaining the integrity and appearance of the final product.

There should be no watermarks left on the caps after the cleaning and drying process. Watermarks can affect the aesthetics of the caps and may also indicate incomplete drying, which could potentially lead to issues such as mold growth or reduced adhesion of labels in the future.

The caps must not undergo any deformation during the cleaning process. Maintaining the original shape of the caps is vital for proper fitting and sealing on the containers. Any deformation could result in improper sealing, leakage, or difficulty in applying the caps, which would affect the quality and usability of the packaged product.

The surface of the caps should be free of scratches. Scratches can not only mar the appearance of the caps but also potentially weaken the structure of the cap, making it more susceptible to damage or failure during use. Care must be taken during the cleaning process to avoid any abrasive actions that could cause scratches.

The caps must be thoroughly dried after cleaning to prevent any moisture-related issues. Moisture can lead to rusting (if the caps have metal components), mold growth, or adhesion problems when applying labels or other secondary operations. A completely dry cap ensures its long-term storage stability and readiness for immediate use in the packaging process.

Loading

The caps are manually or automatically loaded into the machine at the beginning of the process. This step requires proper alignment and placement of the caps to ensure smooth progression through the subsequent cleaning stages.

Pure Water Ultrasonic Cleaning

The caps are subjected to ultrasonic cleaning using pure water. Ultrasonic waves create microscopic bubbles that implode, generating intense forces that dislodge dirt and contaminants from the surface and crevices of the caps. This process is highly effective in removing even the smallest particles and ensuring a thorough initial cleaning.

Pure Water Circulation Spray Rinse

After the ultrasonic cleaning, a circulation spray rinse with pure water is performed. The circulating water system continuously sprays clean water onto the caps, washing away any remaining dirt or cleaning solution. This step helps to ensure that all residues are removed and the caps are further cleaned and rinsed for a more pristine finish.

Rotating Drip

The caps are then placed in a rotating cage or device that allows them to drip dry. The rotation helps in evenly distributing the remaining water droplets and facilitating faster drying. This step is an intermediate stage between the rinsing and the final drying processes, preparing the caps for the more intense drying that follows.

Hot Air Drying

Hot air is blown over the caps to completely dry them. The hot air drying system provides a controlled and efficient drying process, ensuring that all moisture is removed. The temperature and air flow rate are carefully adjusted to achieve optimal drying results without causing any damage to the caps, such as deformation or degradation of the material due to excessive heat.

Discharging

Once the caps are fully cleaned and dried, they are discharged from the machine, ready to be used in the packaging or other downstream processes. This final step ensures that the cleaned caps are properly collected and transferred for further use in a seamless and efficient manner.

The ultrasonic device is a key component that generates ultrasonic waves for effective cleaning. It is designed to provide the necessary power and frequency to create the cavitation effect in the pure water, ensuring thorough cleaning of the caps. The ultrasonic system can be adjusted and optimized according to the specific requirements of the cap cleaning process to achieve the best cleaning results.

The cleaning tank is where the ultrasonic cleaning and initial rinsing processes take place. It is made of suitable materials that are resistant to corrosion and wear, ensuring the longevity and durability of the tank. The design of the cleaning tank is optimized to provide proper containment and circulation of the cleaning liquid, allowing for efficient interaction with the caps during the cleaning process.

The circulation filtration system is responsible for filtering out impurities and contaminants from the cleaning liquid (pure water). It continuously circulates the water, removing any dirt or particles that are dislodged during the cleaning process. This helps to maintain the cleanliness of the cleaning liquid and ensure its effectiveness over multiple cleaning cycles, reducing the need for frequent replacement of the water and improving overall operational efficiency.

The spray system is used for the pure water circulation spray rinse. It consists of nozzles and a pumping system that evenly distributes the water over the caps. The spray system is designed to provide a sufficient pressure and spray pattern to ensure comprehensive rinsing of the caps, removing any remaining cleaning solution or debris. The nozzles are strategically placed to cover all surfaces of the caps for a thorough rinse.

The hot air heating system generates and supplies the hot air for drying the caps. It consists of a heating element and a blower or fan that blows the heated air over the caps. The system is designed to control the temperature and air flow rate accurately to achieve efficient and safe drying. The heating element is capable of quickly heating the air to the required temperature, and the blower ensures proper distribution of the hot air over the caps for uniform drying.

This system is responsible for maintaining the optimal temperature of the cleaning liquid and the hot air. It uses sensors and control algorithms to monitor and adjust the temperature as needed. For the cleaning liquid, the correct temperature helps enhance the cleaning efficiency of the ultrasonic process. In the case of hot air drying, the accurate temperature control ensures that the caps are dried effectively without being damaged by excessive heat. This automatic control system provides stability and consistency in the cleaning and drying processes, improving the overall quality and reliability of the equipment's operation.

The rotating cage rotation system drives the rotation of the cage where the caps are placed during the rotating drip and other stages. It provides a controlled and even rotation speed, ensuring that the caps are evenly exposed to the drying or other processes. The rotation system is designed to be smooth and reliable, minimizing vibrations or disruptions that could potentially damage the caps. It can be adjusted in terms of speed and direction to optimize the performance of the different stages of the process flow.

The inlet device is responsible for receiving the caps to be cleaned and properly guiding them into the machine. It may include conveyors, hoppers, or other feeding mechanisms. The outlet device, on the other hand, is designed to discharge the cleaned and dried caps in an organized and efficient manner. These devices ensure a seamless flow of the caps through the cleaning process, from loading to unloading, and are an important part of the overall functionality and efficiency of the equipment.

The rack provides the structural support for the various components of the cap cleaning machine. It is designed to be sturdy and durable, capable of withstanding the weight and vibrations of the operating components. The rack also ensures proper alignment and installation of the different systems, providing a stable platform for the machine to operate effectively. Its design may take into account factors such as space utilization, ease of maintenance, and compatibility with the overall layout of the production facility.

The control panel is the user interface for operating and monitoring the cap cleaning machine. It typically includes buttons, switches, displays, and a microprocessor-based control system. Through the control panel, operators can set and adjust various parameters such as rotation speed, cleaning time, temperature, and other process variables. The display provides real-time information about the machine's operation status, including any error messages or warnings. The control panel allows for easy operation and control of the machine, enabling operators to optimize the cleaning process and respond quickly to any changes or issues that may arise.

The automatic control system is the brain of the cap cleaning machine. It coordinates and controls the operation of all the other components, ensuring a smooth and efficient cleaning process. It receives input from sensors and user settings through the control panel and then sends commands to the various actuators and systems to perform the necessary operations. The automatic control system can be programmed to follow specific process sequences, adjust parameters based on real-time conditions, and provide safety interlocks to prevent malfunctions or accidents. It plays a crucial role in improving the reliability, efficiency, and repeatability of the cap cleaning process, reducing the need for manual intervention and ensuring consistent cleaning quality.

In conclusion, the cap cleaning machine is a comprehensive and advanced piece of equipment that combines multiple functional components and a well-designed process flow to achieve high-quality cap cleaning. It meets the specific requirements of different cap sizes and materials, ensuring that the cleaned caps meet strict quality standards. With its efficient production capacity and reliable performance, it is an essential tool for industries that require clean and high-quality caps for their packaging processes.
