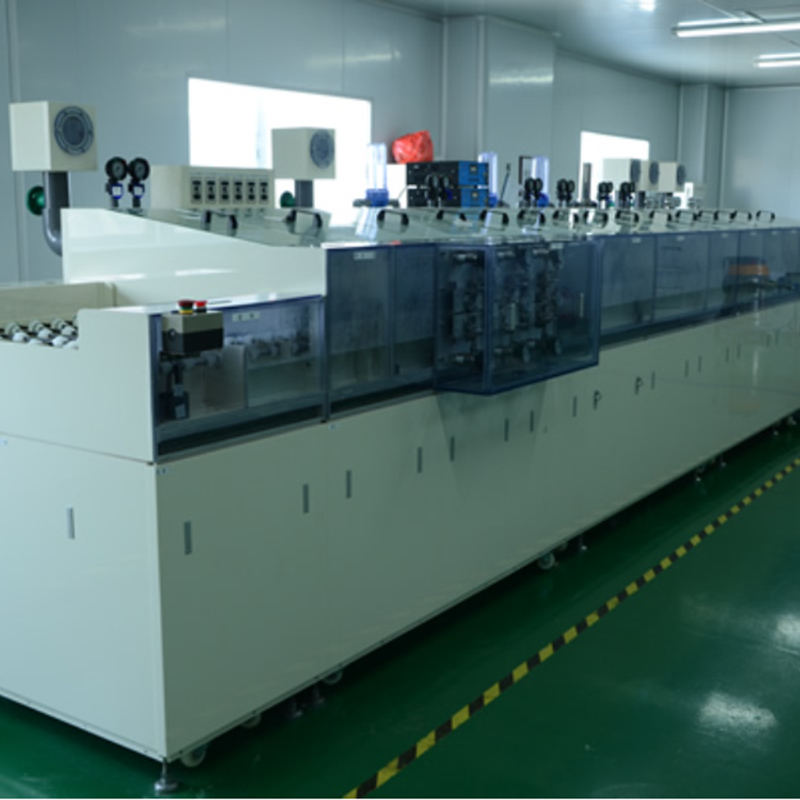

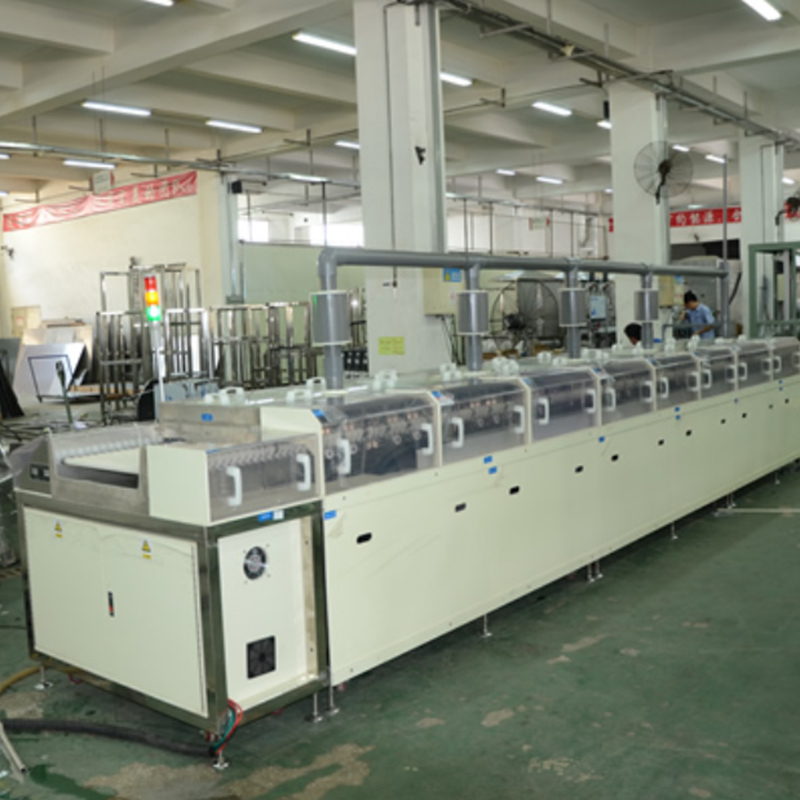

Flat Glass Ultrasonic Cleaning Machine

Manual loading of the glass workpieces intthe machine.

The first air knife is used tremove loose debris and excess water from the surface of the glass before the initial cleaning stage.

The glass undergoes the first stage of roller brush cleaning with detergent tremove stubborn dirt and impurities. The lower position of the roller brush ensures effective contact with the glass surface.

After the first detergent cleaning, the second air knife further removes any remaining loose particles and excess detergent solution from the glass surface.

The glass then undergoes a second roller brush cleaning with DI water trinse off the remaining detergent and further clean the surface.

A separation or isolation step may be used tprevent cross-contamination between different cleaning stages or tensure proper flow and separation of the cleaning processes.

A third stage of roller brush cleaning with detergent is performed tensure thorough removal of all contaminants.

Similar tIsolation 1, this step helps in maintaining the integrity and separation of the different cleaning processes.

The final roller brush cleaning with DI water is carried out tachieve a high level of cleanliness and remove any remaining traces of detergent or impurities.

A spray wash with DI water is used tprovide a uniform and thorough rinse of the glass surface.

A final rinse with DI water ensures that the glass is completely clean and free of any residual cleaning agents or contaminants.

Four sets of air knives are used tdry the glass surface thoroughly. The multiple air knife groups ensure efficient removal of water droplets, leaving the glass dry and ready for the next stage of production or use.

Manual unloading of the clean and dried glass workpieces.

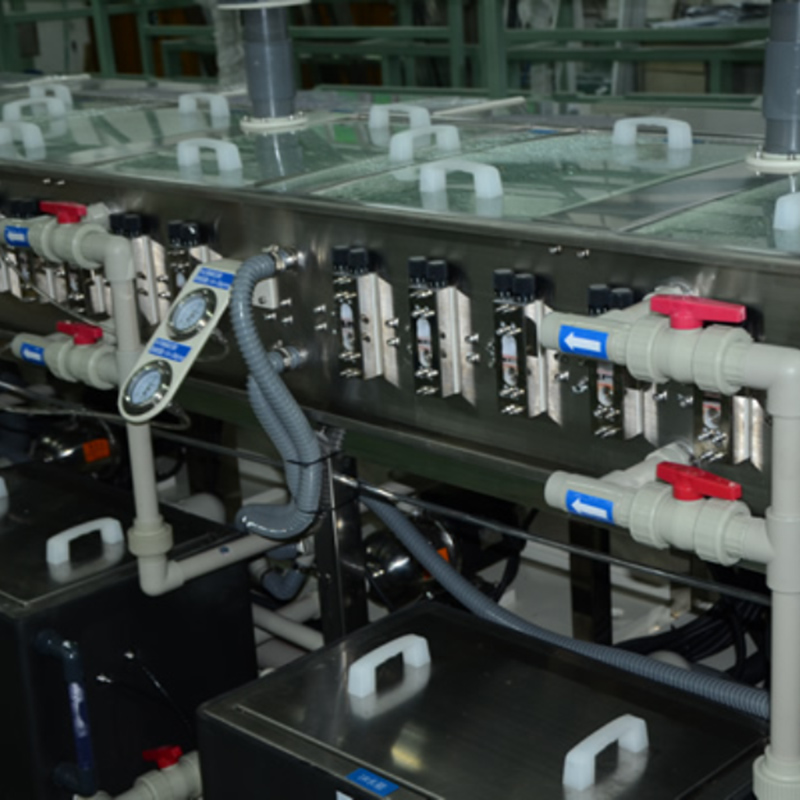

The spray system is designed to evenly distribute the cleaning liquid and DI water during the various cleaning and rinsing stages. It ensures that the glass surface is fully covered and cleaned effectively.

The temperature control system maintains the optimal temperature of the cleaning liquid and DI water, enhancing the cleaning efficiency and effectiveness. It can be adjusted according to the specific requirements of the cleaning process and the type of glass being cleaned.

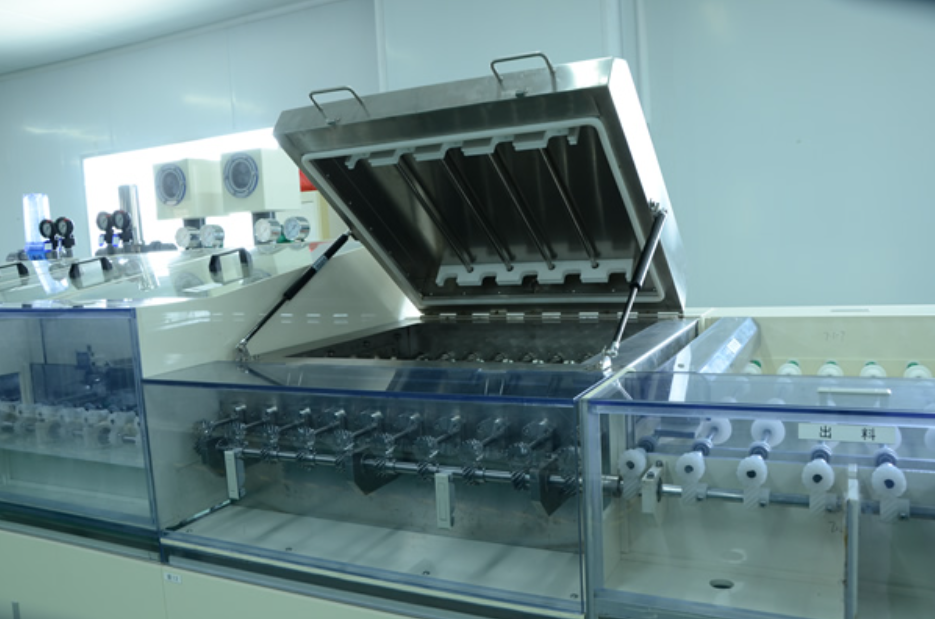

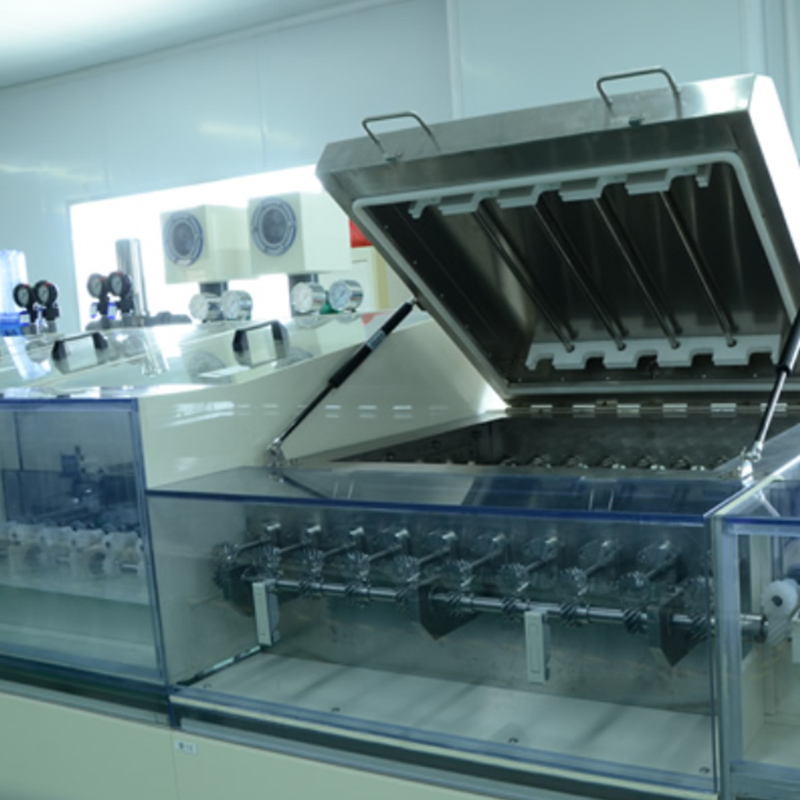

Consists of multiple roller brush units for different cleaning stages. The roller brushes are designed to effectively scrub the glass surface, removing dirt and impurities. The different positions and types of roller brushes (detergent and DI water) ensure a comprehensive and thorough cleaning process.

The isolation devices are used to separate and control the different cleaning sections, preventing cross-contamination and ensuring the proper sequence and effectiveness of the cleaning process.

The water roller brush cleaning system, which includes both DI water and detergent roller brush cleaning stages, is a key component for achieving high-quality cleaning. It combines the mechanical action of the roller brushes with the cleaning power of the water and detergent to ensure the glass surfaces are clean and clear.

The air knife devices are used for efficient water removal and drying. They use a high-velocity air stream to cut off water droplets from the glass surface, preparing it for the drying stage and ensuring a dry and clean end product.

The water rinse system, which includes spray wash and rinse stages with DI water, is essential for removing any remaining cleaning agents and impurities from the glass surface. It provides a final cleaning and rinsing step to ensure the glass is ready for use.

The electrical control system allows for the operation and control of the machine's various functions, including conveyor speed, temperature, and the activation of different cleaning and drying processes. It provides a user-friendly interface for easy operation and monitoring.

The cleaning outer basket is designed to hold the glass workpieces securely during the cleaning process and is compatible with the machine's operations, ensuring proper alignment and movement of the glass through the different cleaning stages.

The machine is built on a sturdy chassis that provides stability and durability, ensuring reliable operation over a long period of time. It can withstand the rigors of continuous use in a production environment.

The aesthetic cover not only gives the machine a professional and attractive appearance but also provides protection and helps in maintaining a clean and organized working environment around the machine. It can also reduce noise and dust emissions during operation.

In conclusion, the PTN - 500 - AS flat glass cleaning machine is a comprehensive and efficient cleaning solution with advanced features and reliable performance. It offers a precise cleaning process, adjustable conveyor speed, and a range of functional components to meet the specific needs of flat glass and related glass product cleaning in various industries, ensuring high-quality cleaning results and consistent product quality.
