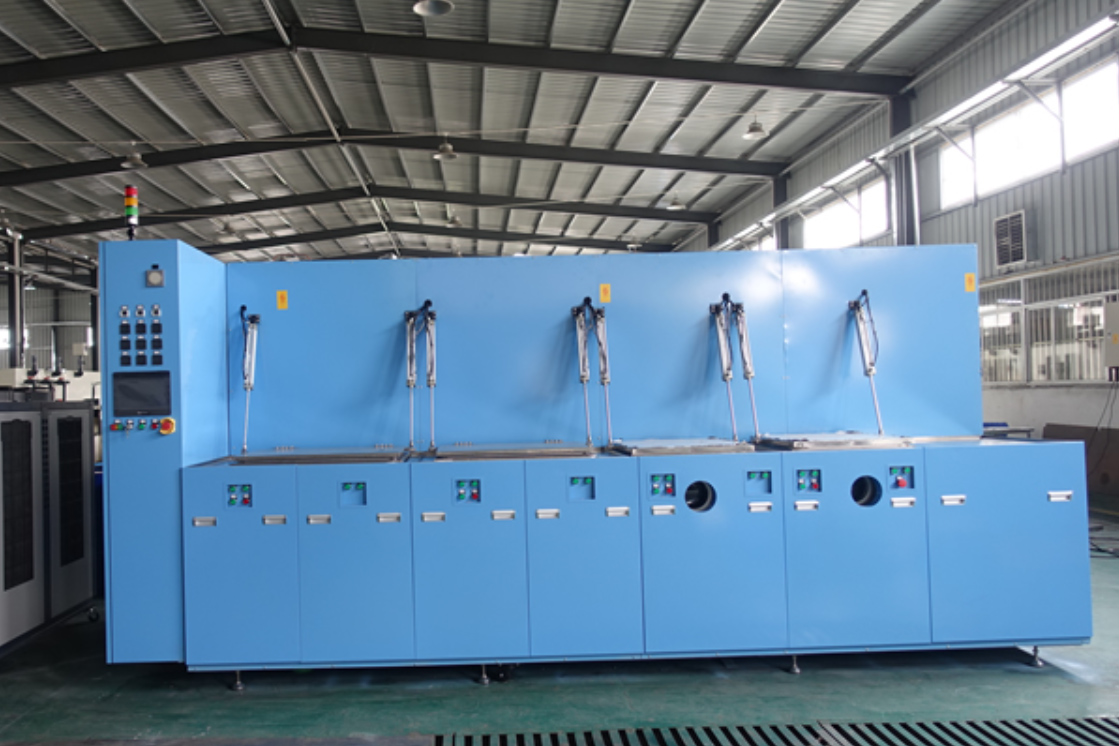

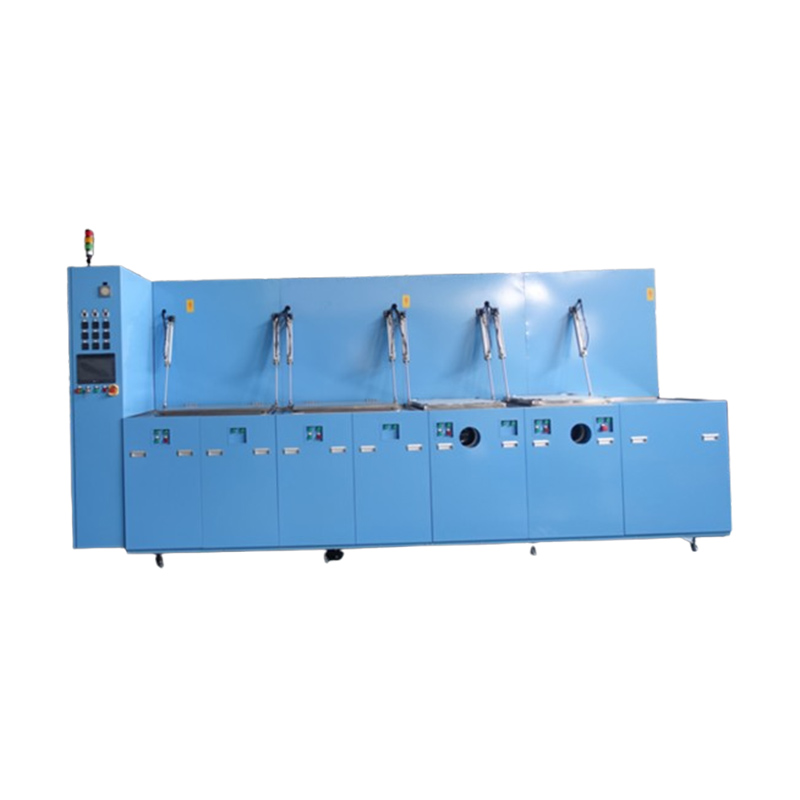

Semi-Automatic Hydrocarbon Ultrasonic Cleaning Machine

Manual loading of the metal workpieces into the machine's basket.

In the first stage, the workpieces are placed in the degassing ultrasonic rough cleaning tank. The degassing process helps to remove any trapped air or gases from the surface of the metal parts, enhancing the effectiveness of the ultrasonic cleaning. The ultrasonic waves create microscopic bubbles that implode, dislodging dirt and contaminants from the metal surfaces in a thorough and efficient manner.

After the rough cleaning, the workpieces move to the vacuum ultrasonic fine cleaning tank. The vacuum environment further improves the cleaning efficiency by reducing the boiling point of the cleaning liquid and increasing its penetration power. The ultrasonic cleaning in this stage provides a more refined and detailed cleaning, ensuring that even the smallest impurities are removed from the metal parts, resulting in a high level of cleanliness.

In the final stage, the workpieces are subjected to vacuum steam cleaning. The steam helps to dissolve and remove any remaining contaminants and oils, providing a final and thorough cleaning. Then, the vacuum drying process is carried out to remove all moisture from the metal parts, ensuring that they are completely dry and ready for the next stage of production or use.

Manual unloading of the clean and dried metal workpieces.

The vacuum cleaning and drying tanks are designed to create and maintain a vacuum environment for enhanced cleaning and drying performance. The vacuum buffer tank helps to stabilize the vacuum pressure and ensure smooth operation of the process. These tanks are made of high-quality materials that are resistant to corrosion and can withstand the vacuum conditions, providing a reliable and durable cleaning environment.

The ultrasonic device is a key component for effective cleaning. It generates ultrasonic waves that create cavitation in the cleaning liquid, which is essential for dislodging dirt and impurities from the metal surfaces. The device can be adjusted to different frequencies and power levels according to the specific cleaning requirements, ensuring optimal cleaning results for different types of metal parts and levels of dirtiness.

The degassing device is used to remove air or gases from the metal parts and the cleaning liquid. This helps to improve the contact between the cleaning liquid and the metal surfaces, enhancing the cleaning efficiency. It also prevents the formation of air bubbles that could interfere with the ultrasonic cleaning process and ensures a more uniform and thorough cleaning.

The circulation filtration system filters out impurities and contaminants from the cleaning liquid, ensuring its cleanliness and effectiveness over multiple cleaning cycles. It continuously circulates the cleaning liquid, removing any dirt or particles that are dislodged during the cleaning process, and maintaining a consistent cleaning quality. This reduces the need for frequent replacement of the cleaning liquid and improves the overall operational efficiency of the machine.

The pitching mechanism provides additional agitation during the cleaning process. It moves the workpieces in a controlled manner, ensuring that all surfaces of the metal parts are exposed to the cleaning liquid and ultrasonic waves evenly. This helps to enhance the cleaning effect and ensure that no areas are missed, resulting in a more comprehensive and uniform cleaning.

The vacuum pumping device is responsible for creating and maintaining the vacuum environment in the cleaning and drying tanks. It is a crucial component for the proper functioning of the vacuum-based cleaning and drying processes. The device is designed to provide a stable and reliable vacuum source, with adjustable vacuum levels to meet the specific requirements of different cleaning stages. It ensures that the vacuum conditions are maintained throughout the process, enabling efficient cleaning and drying of the metal parts.

The tank cover automatic switching mechanism provides convenience and safety during the operation of the machine. It allows for automatic opening and closing of the tank covers, ensuring proper sealing when in operation and easy access during loading and unloading. This mechanism helps to maintain the vacuum environment and prevent any leakage or contamination during the cleaning process. It also improves the overall efficiency and ease of use of the machine, reducing manual labor and the risk of human error.

Given the nature of the cleaning process involving hydrocarbons, the automatic fire extinguishing system is an important safety feature. It is designed to detect and respond quickly to any potential fire hazards. In the event of a fire, the system activates automatically, spraying a suitable fire extinguishing agent to suppress the fire and prevent it from spreading. This ensures the safety of the equipment, operators, and the surrounding environment, providing a reliable safeguard during the cleaning operation.

The air-cooled chiller and cooling system are responsible for maintaining the appropriate temperature of the cleaning liquid and other components. They help to cool down the equipment and prevent overheating, ensuring stable and reliable operation. The cooling system is designed to efficiently dissipate heat, maintaining the optimal operating temperature range for the cleaning process. This not only improves the performance and longevity of the equipment but also helps to ensure the quality and consistency of the cleaning results by preventing any temperature-related issues that could affect the cleaning efficiency or the properties of the cleaning liquid.

The basket is used to hold the metal workpieces during the cleaning process. It is designed to be compatible with the machine's operation and the cleaning process, ensuring proper placement and movement of the workpieces. The basket may have specific features such as perforations or a suitable design to allow for the effective circulation of the cleaning liquid and ultrasonic waves, ensuring that all parts of the workpieces are cleaned evenly. It is made of a material that is resistant to corrosion and can withstand the cleaning environment, providing a reliable and durable means of transporting and holding the metal parts during the cleaning process.

The rack provides the structural support for the machine, ensuring its stability and durability. It is designed to hold and align all the components properly, providing a solid foundation for the operation of the cleaning machine. The outer cover not only gives the machine a professional and aesthetic appearance but also provides protection from dust, debris, and external factors. It helps to maintain a clean and safe working environment around the machine, reducing noise and preventing any accidental contact with the moving parts. The outer cover also plays a role in thermal insulation and can contribute to the overall energy efficiency of the machine by reducing heat loss or gain from the external environment.

In conclusion, the PTC2 - 3040V1SAT semi-automatic hydrocarbon cleaning machine is a comprehensive and efficient cleaning solution with advanced features and reliable performance. It offers a precise cleaning process, adjustable cleaning time, and a range of functional components to meet the specific needs of metal part cleaning in various industries, ensuring high-quality cleaning results and the safety and reliability of the operation.
