Double Stations Multi Wire Saw

Multi-Wire Saw Squarer Equipment CX153A

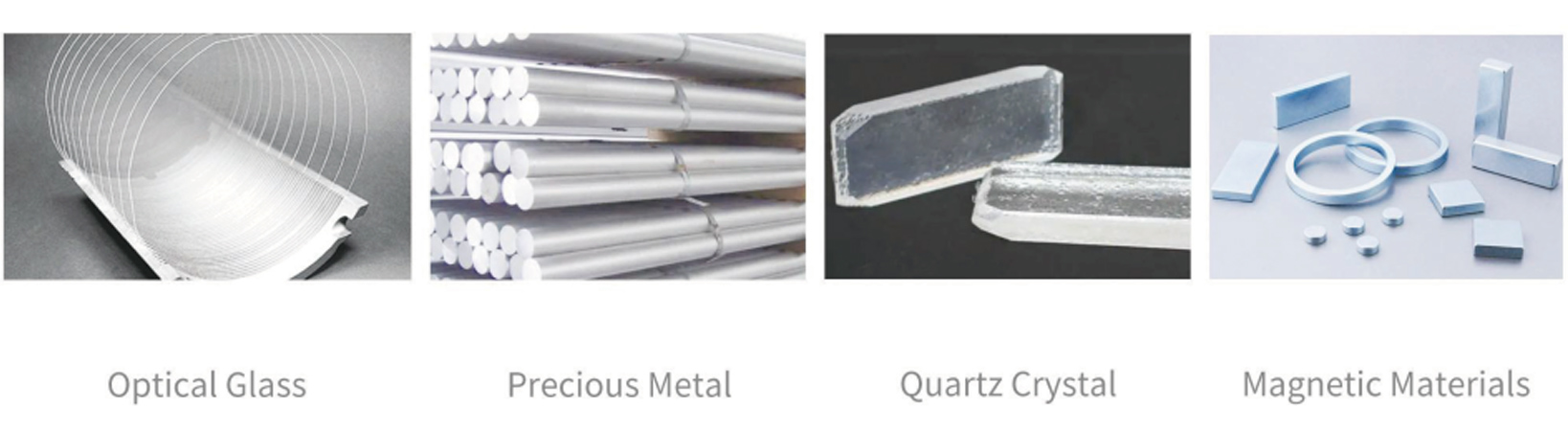

The CX153A multi-wire cutting equipment is used primarily for straight cutting of hard and brittle materials such as rare earth permanent magnets, quartz crystals, optical glass, and precious metals. Its five-roller design enables both slicing and grooving functionalities.

product details

Product Features

7 Jan 2019

The workbench adopts a double-station configuration, allowing simultaneous cutting of two material plates.

The roller frame features an overall casting structure with a high damping coefficient and excellent damping performance.

High-precision and high-rigidity cone positioning is employed for the roller and retractable reel to effectively control the wire network's jitter.

Utilizes a standard universal wire wheel (PV600 reinforced I-shaped wheel) for wire release, eliminating the need for rewinding.

Equipped with advanced functions for both disconnection and continuous cutting.

Technical Parameters

Project	Content	Technical parameters
Model	Model	CX153A
Processing capacity	Material plate size	220×660mm/220×870mm
	Total number of plates	2×2
	Number of stations	2
Roller specifications	Outer diameter of roller × Number of slotting in single station × quantity	（Ф110±10 mm ）×1540×5
Diamond thread	Diamond wire diameter	Ф0.12-Ф0.25
	Max line storage capacity	40 km (φ0.25mm)
	Max round-trip routing speed	1000 m/min
Workbench	Workbench lifting stroke	370mm
	Cutting method	Vertical upward feed
	Cutting feed speed	0.1-99.9mm/min
Cutting fluid	Cutting fluid	Water-based or oil-based cutting fluid
	Liquid storage capacity	800L
	Pump flow	200×2L/min
Power/air source	Power supply	380V±10%、50Hz
	Power	55 Kw
	Air source	Using water-based cutting fluid, air pressure requirements≥0.4 MPa
Dimensions and weight	Dimensions (L x W x H)	3500 × 2600 ×2700 mm
Dimensions and weight	Weight	8500 Kg
