Double Stations Multi Wire Saw

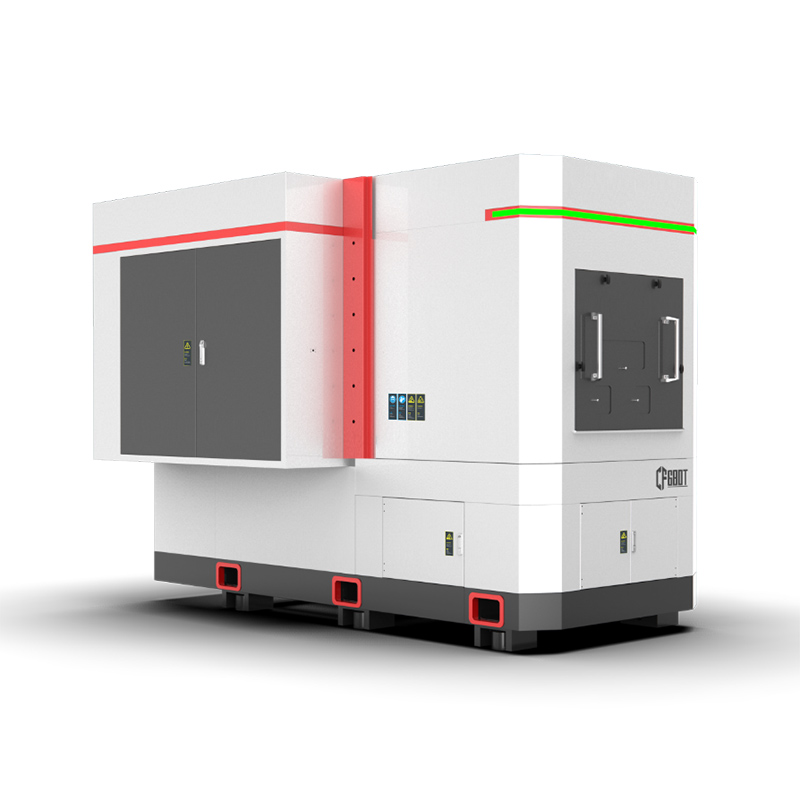

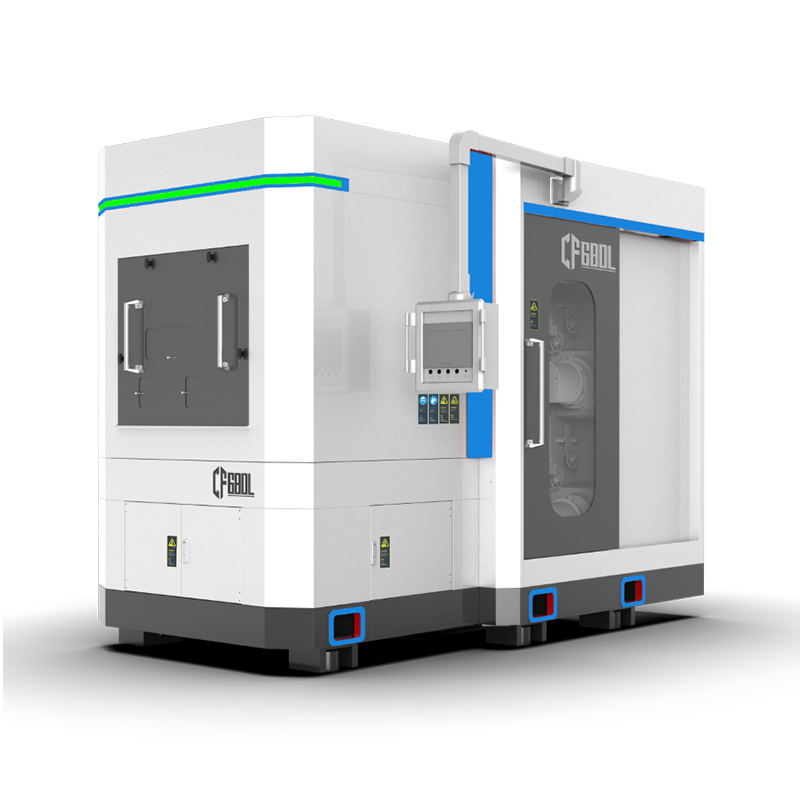

Diamond Wire Multi-wire Cutting Equipment CF680L/T

The CF680 Multi-Wire Cutting Equipment is primarily used for straight cutting of hard and brittle materials such as rare earth permanent magnets, quartz crystals, optical glass, and precious metals. The equipment features an overall casting structure and is equipped with a double-station and four-roller direct drive system, offering advantages of high line speed, high efficiency, and high precision.

product details

Product Features

Diamond-Wire-Multi-wire-Cutting-Equipment-CF680LT2

7 Jan 2019

Double-Station Workbench: Allows simultaneous cutting of two sheets of material.

High Damping Casting Structure: Ensures high damping coefficient and excellent damping performance for stable operation.

6 Guide Wheel Design: Reduces diamond wire torsion and tension fluctuations, minimizes disconnection rate, and improves cutting accuracy.

Standard Universal Wire Release Wheel: Utilizes PV600 reinforced I-shaped wheel, eliminating the need for rewinding.

Lightweight Guide Wheels: Reduces moment of inertia and minimizes torsion and tension fluctuations of the diamond wire, accommodating high line speed and thin line conditions.

High-Precision Cone Positioning: Roller and retractable reel use high-precision and high-rigidity cone positioning to effectively control wire network jitter.

Power-Off Continuous Line and Disconnection Continuous Cutting Function: Ensures uninterrupted operation even in case of power outages.

Technical Parameters

Project	Content	Technical parameters
Model	Model	CF680L	CF680T	CF680H
Processing capacity	Max processing billet size	160×680×160mm	160×680×160mm	160×680×160mm
Processing capacity	Number of stations	2	2	2
Roller specifications	Roller outer diameter × glue length × quantity	（Ф155±10 mm ）×690×4	（Ф170±10 mm ）×690×4	（Ф170±10 mm ）×690×4
Diamond thread	Diamond wire diameter	Ф0.10-φ0.25	Ф0.10-φ0.25	Ф0.10-φ0.25
	Max line storage capacity	30 km (φ0.20mm)	30 km (φ0.20mm)	30 km (φ0.20mm)
	Max round-trip routing speed	1800 m/min	2100 m/min	2400 m/min
Workbench	Workbench lifting stroke	245mm	245mm	245 mm
	Cutting method	Vertical upward feed	Vertical upward feed	Vertical upward feed
	Cutting feed speed	0.1-99.9mm/min	0.1-99.9mm/min	0.1-99.9 mm/min
Cutting fluid	Cutting fluid	Water-based or oil-based cutting fluid	Water-based or oil-based cutting fluid	Water-based or oil-based cutting fluid
	Liquid storage capacity	800L	800L	800L
	Pump flow	200L/min	200L/min	200L/min
Power/air source	Power supply	380V±10%、50Hz	380V±10%、50Hz	380V±10%、50Hz
	Power	57.5Kw/96Kw	57.5Kw	133.5Kw
	Air source	Using water-based cutting fluid, air pressure requirements≥0.4 MPa	Using water-based cutting fluid, air pressure requirements≥0.4 MPa	Using water-based cutting fluid, air pressure requirements≥0.4 MPa
Dimensions and weight	Dimensions (L x W x H)	3330 × 2220 ×2550 mm	3330 × 2220 ×2550 mm	3330 × 2220 ×2550 mm
Dimensions and weight	Weight	9500 Kg	9500 Kg	9500 Kg
