Arc Shape Multi Wire Saw

Multi-wire Saw Tile-shaped Equipment CR680

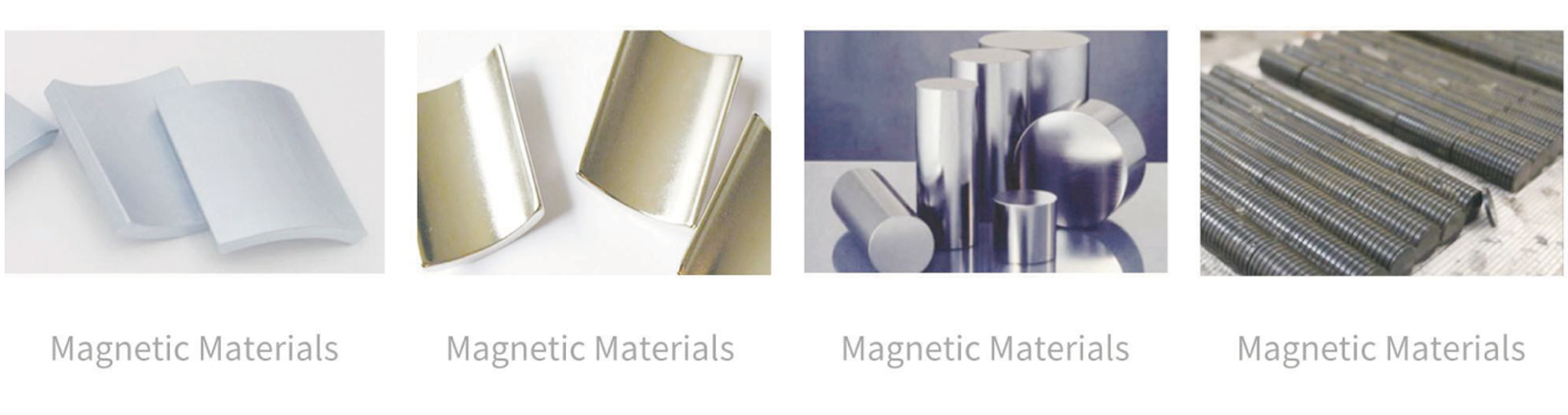

The CR680 multi-wire cutting equipment is a dual-station machine specifically engineered by our company for slicing straight and curved blades in the rare earth permanent magnet industry. It includes an "arc compensation function" and features a four-roller direct drive with a roller rotation adjustment structure. This design allows for precise cutting within a 30mm range, meeting the industry's demands for both straight and curved profiles.

product details

Product Features

7 Jan 2019

The workbench features a double-station configuration capable of simultaneous cutting of two material plates.

The roller frame is cast in a double-wall structure, providing a high damping coefficient and excellent performance in vibration damping.

High-precision, high-rigidity cone positioning is employed for the roller and retractable reel to effectively control wire network jitter.

A roller-assisted disassembly bracket reduces labor intensity and disassembly time for roller maintenance.

The cutting chamber adopts an electric lifting structure and is accessible from three sides, facilitating easy operation and maintenance.

Equipped with arc compensation, disconnection, and continuous cutting functions.

Technical Parameters

Project	Content	Technical parameters
Model	Model	CR680C	CR680S
Processing capacity	Max processing billet size	70×680×160mm	130×680×160mm
Processing capacity	Number of stations	2	2
Roller specifications	Roller outer diameter × glue length × quantity	（Ф155±10 mm ）×690×4	（Ф155±10 mm ）×690×4
Diamond thread	Diamond wire diameter	Ф0.12-φ0.25	Ф0.12-φ0.25
	Max line storage capacity	40 km (φ0.25mm)	40 km (φ0.25mm)
	Max round-trip routing speed	1200 m/min	1200 m/min
Workbench	Workbench lifting stroke	245mm	245mm
	Workbench translation stroke	30mm	30mm
	Cutting method	Vertical upward feed	Vertical upward feed
	Cutting feed speed	0.1-99.9mm/min	0.1-99.9mm/min
Cutting fluid	Cutting fluid	Water-based or oil-based cutting fluid	Water-based or oil-based cutting fluid
	Liquid storage capacity	800L	800L
	Pump flow	200L/min	200L/min
Power/air source	Power supply	380V±10%、50Hz	380V±10%、50Hz
	Power	33 Kw	33 Kw
	Air source	Using water-based cutting fluid, air pressure requirements≥0.4 MPa	Using water-based cutting fluid, air pressure requirements≥0.4 MPa
Dimensions and weight	Dimensions (L x W x H)	2950 × 1920 ×2500 mm	2950 × 1920 ×2500 mm
Dimensions and weight	Weight	6000 Kg	6000 Kg
