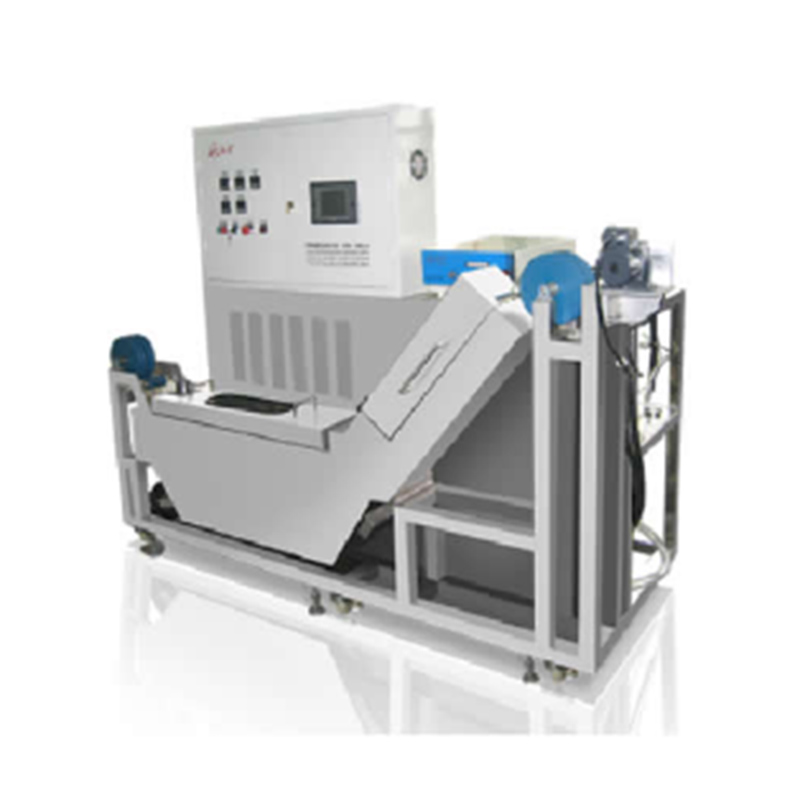

Strip Carbon Hydrogen Ultrasonic Cleaning Machine
Cleaning Process
01
7 Jan 2019
Ultrasonic Cleaning: The strip material is subjected to ultrasonic cleaning, which uses high-frequency sound waves to create microscopic bubbles that implode, dislodging contaminants from the surface of the strip. This process is highly effective in removing dirt, oils, and other impurities.
Strong Air Knife Water Cutting: After ultrasonic cleaning, a strong air knife is used to cut off excess water from the strip surface. This helps to reduce the moisture content on the strip and prepares it for the drying stage.
Hot Air Drying: The strip then passes through a hot air drying zone where hot air is blown over it to completely dry the surface. This ensures that the strip is free of moisture and ready for further processing or use.
Structural Components
Cleaning Tank
The cleaning tank is where the ultrasonic cleaning process takes place. It is designed to hold the cleaning solution and the strip material, and is made of materials that are resistant to corrosion and wear.
Air Knife Zone
The air knife zone is equipped with strong air knives that are used to cut off excess water from the strip surface. The air knives are adjustable to ensure optimal water removal.
Hot Air Drying Zone
The hot air drying zone consists of a series of hot air blowers that provide a continuous flow of hot air to dry the strip. The temperature and air flow rate can be adjusted to meet the specific drying requirements.
Hot Air Heating System
The hot air heating system generates the hot air required for the drying process. It is designed to provide a stable and consistent heat source to ensure efficient drying.
Carbon Hydrogen Filtration System
The carbon hydrogen filtration system filters and recycles the cleaning solution, removing contaminants and maintaining its cleanliness and effectiveness. This helps to reduce waste and operating costs.
Air Filtration System
The air filtration system filters the air used in the drying process to remove dust and other impurities. This ensures that the dried strip is free of contaminants and of high quality.
Storage Tank
The storage tank holds the cleaning solution and provides a reserve for continuous operation. It is connected to the filtration system to ensure a constant supply of clean solution.
Ultrasonic Generator
The ultrasonic generator produces the high-frequency sound waves used in the ultrasonic cleaning process. It can be adjusted to different frequencies and power levels to optimize the cleaning effectiveness.
Electrical Control System
The electrical control system manages the power supply and operation of the various components of the cleaning machine. It provides a user-friendly interface for easy operation and monitoring.
Strip Conveyor System
The strip conveyor system transports the strip material through the cleaning and drying zones. It is designed to ensure smooth and continuous operation, and can be adjusted to different speeds to meet the production requirements.
Rack
The rack provides the structural support for the cleaning machine. It is made of sturdy materials to ensure stability and durability.
Features
Online Cleaning
The strip carbon hydrogen cleaning machine is designed for online cleaning, which means that it can be integrated into a production line for continuous operation. This saves time and labor, and improves production efficiency.
In conclusion, the strip carbon hydrogen cleaning machine is a highly efficient and reliable cleaning solution for strip materials. With its advanced cleaning process and comprehensive structural components, it offers a cost-effective and environmentally friendly way to clean strip materials and ensure high-quality products.
