Double Stations Multi Wire Saw

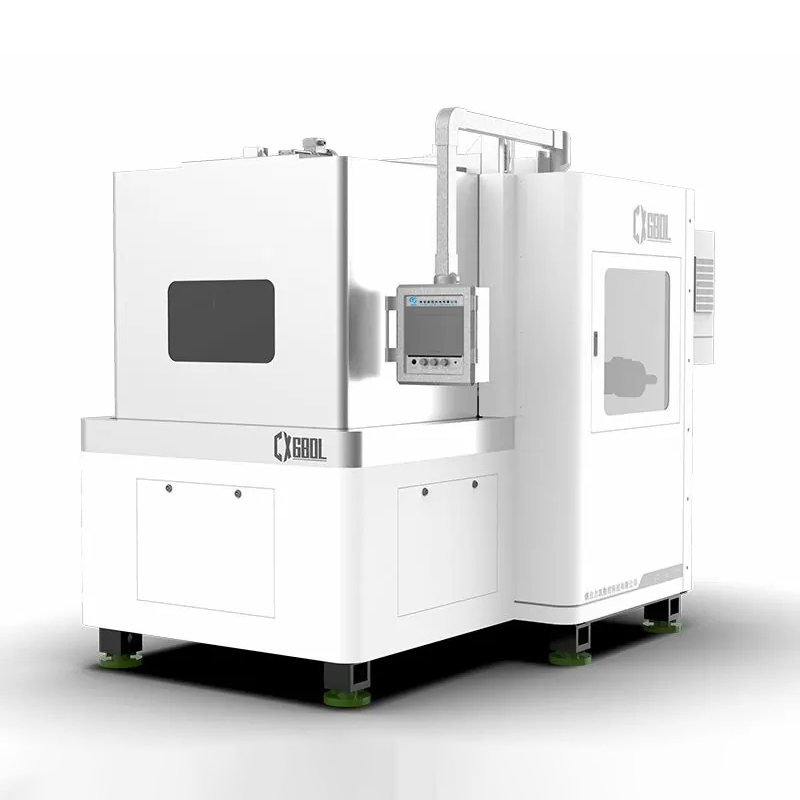

Diamond Multi-wire Cutting Equipment CX680

The CX680 multi-wire cutting equipment is specialized for straight cutting of hard and brittle materials like rare earth permanent magnets, quartz crystals, optical glass, and precious metals. It features a four-roller direct drive system with roller rotation adjustment, enabling precise cutting within a 30mm range. This design ensures high cutting efficiency and accuracy for various industrial applications requiring intricate cutting of such materials.

product details

Product Features

7 Jan 2019

The roller frame features a double-wall structure cast in one piece, providing a high damping coefficient and excellent damping performance.

The workbench is configured with double-stations, allowing simultaneous cutting of two material plates.

High-precision, high-rigidity cone positioning is adopted for the roller and retractable reel to effectively control wire network jitter.

A roller-assisted disassembly bracket reduces labor intensity and disassembly time during roller maintenance.

The operating compartment utilizes an electric lifting structure and includes a safety device.

The cutting chamber is accessible from three sides, facilitating easy operation and maintenance.

Equipped with disconnection and continuous cutting functions for enhanced operational flexibility.

Technical Parameters

Project	Content	Technical parameters
Model	Model	CX680L	CX680C
Processing capacity	Max processing billet size	160×680×160mm	160×680×160mm
Processing capacity	Number of stations	2	2
Roller specifications	Roller outer diameter × glue length × quantity	（Ф155±10 mm ）×690×4	（Ф155±10 mm ）×690×4
Diamond thread	Diamond wire diameter	Ф0.12-φ0.25	Ф0.12-φ0.25
	Max line storage capacity	40 km (φ0.25mm)	40 km (φ0.25mm)
	Max round-trip routing speed	1200 m/min	1200 m/min
Workbench	Workbench lifting stroke	245mm	245mm
	Cutting method	Vertical upward feed	Vertical upward feed
	Cutting feed speed	0.1-99.9mm/min	0.1-99.9mm/min
Cutting fluid	Cutting fluid	Water-based or oil-based cutting fluid	Water-based or oil-based cutting fluid
	Liquid storage capacity	800L	800L
	Pump flow	200L/min	200L/min
Power/air source	Power supply	380V±10%、50Hz	380V±10%、50Hz
	Power	41.5 Kw	49.5 Kw
	Air source	Using water-based cutting fluid, air pressure requirements≥0.4 MPa	Using water-based cutting fluid, air pressure requirements≥0.4 MPa
Dimensions and weight	Dimensions (L x W x H)	2950 × 1920 ×2500 mm	2950 × 1920 ×2500 mm
Dimensions and weight	Weight	6000 Kg	6000 Kg
